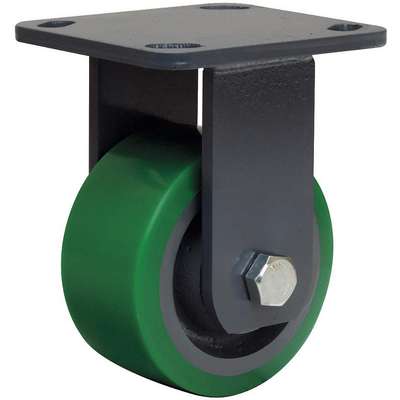

Standard Plate Caster, Rigid, Polyurethane, 750 lb., 4" Wheel Dia.
#927468-4 | Pkg Qty: 1
$70.48 pkg
| $70.48 ea
| Item Number | 927468-4 |
| Scanner Description | Plte Caster,Rgd,Poly,4 In.,750 |
| Inventory Status | Drop Ship Item |
| Weight | 6.3 lb |
| Brand | APPROVED SUPPLIER |
Technical Specifications
Application
All Purpose Industrial and Commercial Casters, Casters, Aerospace Tooling, Automotive Assembly Lines, Body Dolly Carts, Engine Dollies, Material Carts, Chassis Rack Carts
Includes
Spanner Bushing
Brand
APPROVED SUPPLIER
Inside Bolt Hole Spacing
3 in. x 3 in.
Caster Brake Included
No
Item
Plate Caster
Caster Core Material
Cast Iron
Load Rating
750 lb.
Caster Group
Rigid Caster
Mfg Part Number
R-WH-4DB
Caster Load Rating Range
Light- Medium Duty
Non-Marking
Yes
Caster Max. Temp.
200°F
Number of Wheels
1
Caster Min. Temp
-40°F
Outside Bolt Hole Spacing
2-5/8 in. x 3-5/8 in.
Caster Plate Hole Pattern
B
Overall Height
5-5/8 in.
Caster Plate Size
4 in. x 4-1/2 in.
Pack Quantity
1
Caster Swivel Lock Type
No Lock Included
Plate Caster Sub-Type
Rigid
Caster Temp. Range Available
Yes
Plate Size
4 in. x 4-1/2 in.
Caster Wheel Bearings
Ball
Replacement Wheel
4DU67
Caster Wheel Shape
Standard
Standards
ICWM
Caster Wheel/Tread Material
Polyurethane
Wheel Color
Green
Core Color
Gray
Wheel Color Family
Green
Durometer - Casters/Wheels
90 Shore A
Wheel Diameter
4 in.
Features
Floor Protective
Wheel Width
2 in.
Frame Finish
Enamel
Product Description
Polyurethane Wheel Casters on Cast-Iron Core Casters with directional lock feature thumbscrew brake. Forged-Steel Frame Casters Precision ball raceway, except Nos. 5VH73, 5VH74, 5VH75, and 5VH83 which have hardened precision roller. Include spanner bushing.
Item Barcode
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 5VG54 | Plte Caster, Rgd,Poly,4 |
|
UNSPSC CODES | 31162701 | |
|
VMRS (ATA) CODES | 053-006-009 | Plte Caster, Rgd,Poly,4 |
