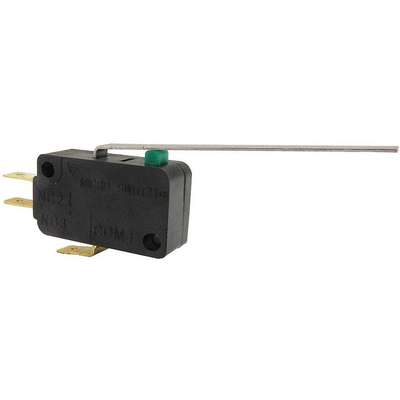

0.1A @ 120V Lever, Long Miniature Snap Action Switch; Series V7

Zoom Icon
Secondary Item Image
24A293_SS01_R01_C23

#927461-9 | Pkg Qty: 1

$3.51 pkg | $3.51 ea
Item Number 927461-9
Scanner Description Prmium Mini Swch,0.1A,Spdt,Lng
Inventory Status Drop Ship Item
Weight 0.01 lb
Brand HONEYWELL

Technical Specifications

AC Contact Rating
0.1A @ 120V
Max. Pretravel
5.97mm
Actuator Length
2.34 in.
Mfg Part Number
V7-3S17D8-048
Actuator Type
Lever, Long
Mounting Dimension
0.41 x 0.87 in. Centers
Amps
0.1
Mounting Dimension - Snap Action Switch
0.87 in. Centers
Basic Actuator Type
Lever
Number of Circuits - Snap Action Switch
1
Brand
HONEYWELL
Operating Force
0.16N
Contact Form
SPDT
Operating Force (Oz.)
0.16N
Contact Form- Switches
SPDT
Operating Temp Range
-40° to 180°F
Contact Type
SPDT
Operating Temp. Range (F)
-40 to 180
Current Rating
0.1A
Over Travel
3mm
Depth
0.4 in.
Pack Quantity
1
Depth - Snap Action Switch
0.40 in.
Release Force
0.02 oz.
Differential Travel
1.27mm
Series
V7
Differential Travel (In.)
1.27mm
Snap Action Switch Type
Miniature Snap Action Switch
Electrical Connection
Quick Connect
Standards
UL, CSA, ENEC
Height
0.63 in.
Type
Premium V-Basic
Height - Snap Action Switch
0.63 in.
Type of Actuator
Long Straight Lever
Housing Material
PCT Polyester Thermoplastic
Voltage (V)
125VAC
Item
Miniature Snap Action Switch
Voltage Rating
125VAC
Length
1.14 in.
Watertight - Snap Action Switch
No
Lever Actuator Length - Snap Action Switch
2.34 in.
Width - Snap Action Switch
1.14 in.

Product Description

This Microswitch™ miniature switch features quick-connect terminals and a long straight lever actuator. It is designed to operate in temperatures ranging between -40° and 180°F.
