LEGRAND

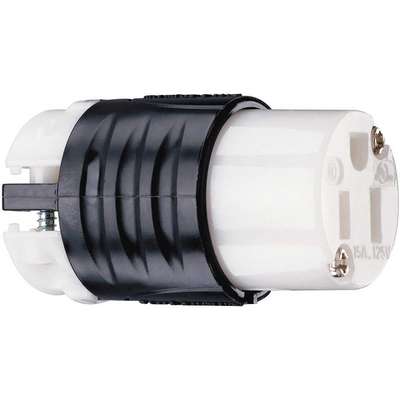

Legrand 15 Amp Industrial Grade Standard Straight Blade Connector, 5-15R NEMA Configuration, Black/White

Hover over image to magnify
Straight Blade Connector,15A,
Straight Blade Connector,15A,

#927449-9 | Pkg Qty: 1

$16.27 pkg | $16.27 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amperage
15 A
Material
Nylon
Amps
15 A
Maximum Wire Size
4 AWG
Antimicrobial
No
Mfr. Part Number
PS5269X
Brand
LEGRAND
NEMA Configuration - Plugs & Connectors
5-15
Color Family
Black
NEMA Plug Configuration
5-15R
Connection Orientation
Straight
NEMA Receptacle Configuration
5-15R
Contact Material
Brass
Number of Poles
2
Cord Size
0.230 in to 0.690 in
Number of Wires
3
Corrosion Resistant
Yes
Package Quantity
1
Current Rating
15 A
Phase
Single
For Maximum Cable Diameter
0.72 in.
Power Indicating Light
No
For Minimum Cable Diameter
0.23 in.
Power Indicator
No
Grade
Industrial
Shipping Weight
.16 lb.
Grounding
Grounded
Standards
cULus Listed, UL 498
Horsepower
1/2 hp
Voltage
125VAC
Housing Color
Black
Voltage Rating
125V AC
Housing Material
Nylon
Wire Connection Type
Screw Terminals
IP Rating
Not Rated
Wiring Style
Standard
Item
Straight Blade Connector
General
Amps - Plugs and Receptacles
15
NEMA Plug Configuration - Plugs and Receptacles
5-15R
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
125V AC
HP
1/2 hp

Product Description

This hospital-grade straight-blade connector is designed to withstand the chemical and physical demands of the healthcare industry. It features nickel-plated contacts and stainless steel hardware to help provide maximum corrosion resistance.

Item Barcode
9274499
Straight Blade Connector,15A,
 NameItemDescription
Grainger DropshipGrainger Dropship53CX66Straight Blade
UNSPSC CODESUNSPSC CODES39121402
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Straight Blade
