OSG

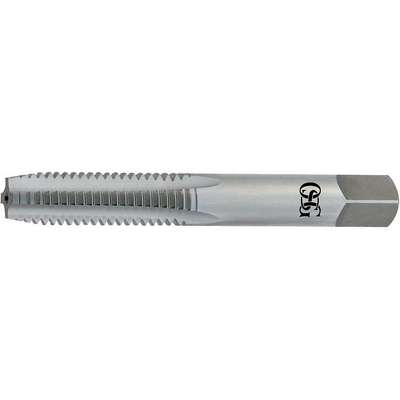

#10-32, Tap, Right Hand, Plug, 3 Flutes, High Speed Steel, Bright Tap Finish
#927383 | Pkg Qty: 1
$21.90 pkg | $21.90 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
OSG
Shank Length
1-19/64 in. in.
Cutting Direction
Right
Shipping Weight
.03 lb.
Drill Size
0.1575 in., 0.1596 in., 0.1616 in., 0.1636 in., 0.1656 in.
Spiral Direction
Neutral
Finish
Bright
Square Size
0.19 in.
Item
Screw Thread Insert STI Tap
Subgroup | Tap
Straight Flute
List Number
126
Tap Chamfer
Plug
Material
High Speed Steel
Tap Dimension Type
Inch
Mfr. Part Number
1805800
Tap Finish
Bright (Uncoated)
Number of Flutes
3
Tap Material
High Speed Steel
Number of Pieces
1
Tap Size
#10
Overall Length
2-9/16 in.
Tap Style
Straight Flute (Hand)
Package Quantity
1
Tap Thread Size
#10-32
Pitch
32
Thread Direction
Right Hand
Pitch Diameter Limits
H2
Thread Length
23/32 in.
Primary Material Application
All Materials
Thread Size
#10-32
Series
126
Thread Type
STI
Shank Diameter
1/4 in.
General
55% Thread Drill Size
4.25 mm
Secondary Material Application ISO Code
K, N, P
65% Thread Drill Size
4.15 mm
Shank Dia.
1/4 in
Coolant Fed
Non-Coolant Through
Shank Type - Machining
Straight
Extended Neck
No
Tap Grouping
Individual
Material Grade - Machining
126
Thread Limit
H2
Measurement System
Pipe
Thread Limit / Class of Fit
H2
Primary Material Application ISO Code
H, K, M, N, O, P, S
Thread Standard
UNF
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Threads per Inch
32
Product Description
High-speed steel STI taps provide good wear resistance in general purpose tapping applications in a range of materials. These taps have a bright finish that provides a smooth, polished surface.
Item Barcode
Tap,Plug,#10-32,Bright,3 Flt
Name | Item | Description | |
---|---|---|---|
Grainger Dropship | 33ZK78 | Tap,Plug,#10- 32,Bright,3 | |
UNSPSC CODES | 23241615 | ||
VMRS (ATA) CODES | 053-006-009 | Tap,Plug,#10- 32,Bright,3 |
