|Mfg Part Number||B320BB553C|
- Shipping Weight 0.35 lbs.

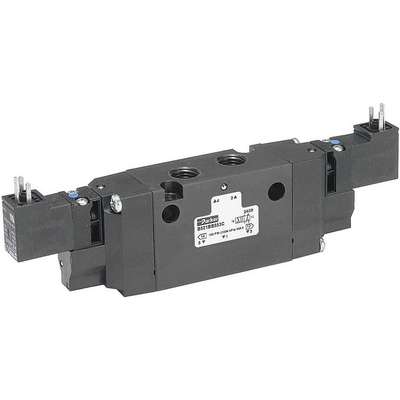

- Item Solenoid Air Control Valve
- Valve Ways and Positions 4-Way/2-Position
- Voltage 120VAC
- Valve Actuator / Return Solenoid / Solenoid
- Pipe Size 1/8"
- Max. CFM - Valves 0.75
- Operational Pressure Range 20 to 145 psi
- NEMA Classification NEMA 4
- Valve Vacuum Range 0 to 28" Hg
- Body Style Body Ported
- Pilot Port Size 1/8" NPT
- Coefficient of Volume 0.75
- Electrical Connections 15mm, 3-Pin Male DIN
- Ambient Temp. Range 5 Degrees to 120 Degrees F
- Override Non-Locking Flush
- Overall Height 1-1/2"
- Overall Length 6-1/2"
- Overall Width 1"
- Standards CE, CSA, cUS
- Pneumatic Valves Product Group Solenoid Air Control Valve
|VMRS (ATA) CODES||053-006-009||Solenoid Air Control,1/8",|
