3/8" 24VDC N/A

Item Number	927268-9
Scanner Description	Solenoid Air Control,3/8",24VDC
Weight	0.83 lb
Brand	PARKER

Pkg Qty: 1

$153.00 pkg | $153.00 ea

One-time delivery Enroll in Auto-Reorder

Add to List

Technical Specifications


Brand	PARKER		Pack Quantity	1
Mfg Part Number	B6V2BB549A

Product Description

Shipping Weight 0.83 lbs.

Country of Origin USA Country of Origin is subject to change.

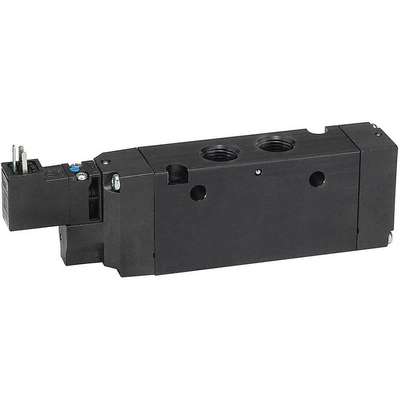

Item Solenoid Air Control Valve
Valve Ways and Positions 3-Way/2-Position
Voltage 24VDC
Valve Actuator / Return Solenoid / Spring
Pipe Size 3/8"
Max. CFM - Valves 2.50
Operational Pressure Range 20 to 145 psi
NEMA Classification NEMA 4
Valve Vacuum Range 0 to 28" Hg
Normally Open / Normally Closed Normally Closed
Body Style Body Ported

Pilot Port Size 3/8" NPT
Coefficient of Volume 2.7
Electrical Connections 15mm, 3-Pin Male DIN
Ambient Temp. Range 5 Degrees to 120 Degrees F
Override Non-Locking Flush
Overall Height 2-1/2"
Overall Length 5-1/2"
Overall Width 1-1/2"
Standards CE, CSA, cUS
Pneumatic Valves Product Group Solenoid Air Control Valve

Item Barcode

Cross References
Legal

Name	Item	Description
Grainger Dropship	3FDN3
UNSPSC CODES	40141605
VMRS (ATA) CODES	053-006-009	Solenoid Air Control,3/8",
