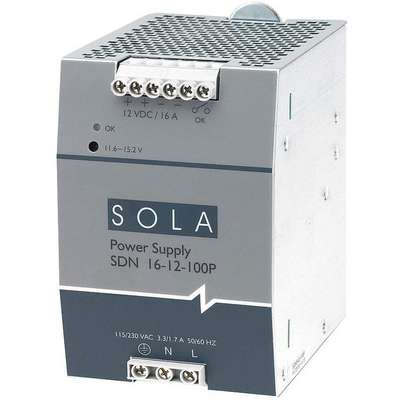

DC Power Supply, Style: Switching, Mounting: DIN Rail

Zoom Icon
Secondary Item Image
5DJL7_1

#927267-2 | Pkg Qty: 1

$606.90 pkg | $606.90 ea
Item Number 927267-2
Scanner Description Dc Power Supply,12VDC,16A,60Hz
Inventory Status Drop Ship Item
Weight 3.3 lb
Brand SOLA/HEVI-DUTY

Technical Specifications

Amps
16
Output Amps
16
Brand
SOLA/HEVI-DUTY
Output Noise
Less Than 50mV
Case Material
Metal Case
Output Noise (mV)
Less Than 50 mVpp
Case Style
Fulling Enclosed Metal Housing
Output Voltage
12VDC
Depth
4.55 in.
Pack Quantity
1
Features
Power Factor Correction, Improved Metal Mounting Clip, Adjustable Voltage, Parallel Capability Standard On All Units, Industrial Grade Design, Narrow Width On Rail For Space Critical Applications, User-Friendly Front Panel
Peak Amps
17.6
Height
4.88 in.
Phase - Electrical
1
Hold Up Time
Greater Than 20 msec
Power Rating
192W
Hz
60
Power Rating (Watts)
192
IP Rating
20
Series
SDN-P
Input Voltage
115 to 230VAC
Standards
cUL us E61379, cRUus E137632 E234790, CE
Item
DC Power Supply
Status Indicator
Green LED
Mfg Part Number
SDN16-12-100P
Style
Switching
Mounting
DIN Rail
Temp. Range (F)
-10 to 60 Plus
Mounting Type
DIN Rail
Type
Switching
NEMA Rating
1
Voltage Output
12VDC
Operating Temp Range
-10° to 60°C
Width
3.23 in.

Product Description

SDN Series DC Power Supplies (DIN Mounted)

  • Class 1 Div. 2 Hazardous Locations Can be connected in parallel 24VDC output models are adjustable from 22.5 to 28VDC
  • Feature narrow width on DIN rail for space-critical applications, rugged metal case, and DIN connector. Large, sturdy, multiple-point screw terminations for quick connection. High-efficiency 88%, switching power supply. Extra boost capacity for high inrush loads without foldback or shutdown. Auto-select voltage input. For industrial control and process control applications including DC input solenoids, valves, switches (prox switches), relays, PLCs, and sensors.
  • UL and C-UL Listed, CSA and CE Certified. Meet SEMI F47 SAG Immunity.
