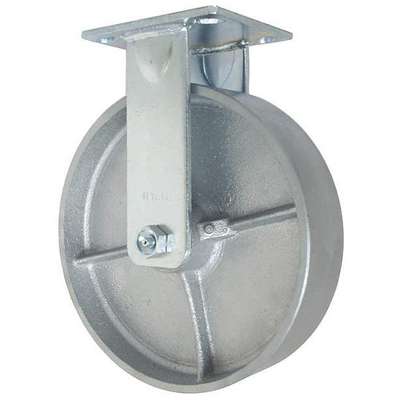

8" Medium-Duty Rigid Plate Caster, 1400 lb. Load Rating

Zoom Icon
Secondary Item Image
29XV68_1

#927243-7 | Pkg Qty: 1

$132.50 pkg | $132.50 ea
Item Number 927243-7
Scanner Description Rgd Cstr,Cast Iron,8",1400 Lb
Inventory Status Drop Ship Item
Weight 11.45 lb
Brand RWM

Technical Specifications

Application
All Purpose Industrial and Commercial Casters, Casters, Aerospace Tooling, Automotive Assembly Lines, Body Dolly Carts, Engine Dollies, Material Carts, Chassis Rack Carts
Includes
Complete Caster
Brand
RWM
Inside Bolt Hole Spacing
2-5/8 in. x 3-5/8 in.
Caster Brake Included
No
Item
Plate Caster
Caster Core Material
Cast Iron
Load Rating
1400 lb.
Caster Group
Rigid Caster
Mfg Part Number
65-CIR-0820-R
Caster Load Rating Range
Medium Duty
Non-Marking
No
Caster Max. Temp.
350°F
Number of Wheels
1
Caster Min. Temp
-40°F
Outside Bolt Hole Spacing
3 in. x 3 in.
Caster Plate Hole Pattern
B
Overall Height
10-1/8 in.
Caster Plate Size
4 in. x 4-1/2 in.
Pack Quantity
1
Caster Swivel Lock Type
No Lock Included
Plate Caster Sub-Type
Rigid
Caster Temp. Range Available
Yes
Plate Size
4 in. x 4-1/2 in.
Caster Wheel Bearings
Roller
Replacement Wheel
Mfr. No. CIR-0820-08
Caster Wheel Shape
Standard
Standards
ISO 9001, ICWM
Caster Wheel/Tread Material
Cast Iron
Wheel Color
Silver
Core Color
Silver
Wheel Color Family
Silver
Durometer - Casters/Wheels
50 RC
Wheel Diameter
8 in.
Frame Finish
Zinc
Wheel Width
2 in.

Product Description

Heavy-duty kingpinless plate casters have large-diameter ball bearings and large-diameter hardened bearing raceways that distribute loads evenly across the casters, allowing them to withstand heavier loads and more frequent use than medium-duty kingpinless plate casters. These casters have Zinc-Plated or powder-coated steel frames and mount to the bottom of carts, trucks, and other industrial equipment used in towing applications, heavy manufacturing, automotive assembly lines, and similar environments.

Item Barcode
9272437
  Name Item Description
Grainger Dropship Grainger Dropship 53CF25 Rgd Cstr, Cast Iron,8",
UNSPSC CODES UNSPSC CODES 31162701
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Rgd Cstr, Cast Iron,8",
