WIDIA GTD

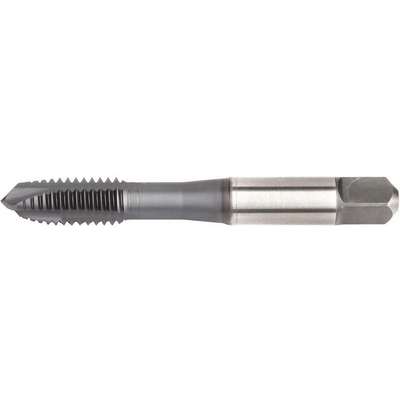

M24-2.00, Tap, Right Hand, Plug, 3 Flutes, High Speed Steel, Oxide Tap Finish
#927238-8 | Pkg Qty: 1
$238.73 pkg | $238.73 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
WIDIA GTD
Shank Length
66.3 mm
Cutting Direction
Right
Shipping Weight
.56 lb.
Dimension Type
Metric
Spiral Direction
Neutral
Finish
Oxide
Square Size
14.4 mm
Grade
WU32MG
Subgroup | Tap
Spiral Point
Insert Material
High Speed Steel
Tap Chamfer
Plug
Item
Spiral Point Tap
Tap Dimension Type
Metric
List Number
VT-SPO
Tap Finish
Black Oxide
Mfr. Part Number
VTSPO5543
Tap Material
HSS-E
Number of Flutes
3
Tap Size
M24
Number of Pieces
1
Tap Style
Spiral Point
Overall Length
124.7 mm
Tap Thread Size
M24x2.00
Package Quantity
1
Tap Thread Type
Metric Fine
Primary Material Application
Cast Iron, Stainless Steel, Steel
Thread Direction
Right Hand
Series
VT-SPO
Thread Length
31 mm
Shank Diameter
19.31 mm
Thread Type
Metric Fine
General
55% Thread Drill Size
22.50 mm
Shank Dia.
19.31 mm
65% Thread Drill Size
7/8 in
Shank Type - Machining
Straight
75% Thread Drill Size
22.00 mm
Standards
USCTI 302A
Coolant Fed
Non-Coolant Through
Tap Grouping
Individual
Extended Neck
Yes
Thread Limit
D7
Material Grade - Machining
WP49EG
Thread Limit / Class of Fit
D7
Measurement System
Metric
Thread Pitch
2.00 mm
Primary Material Application ISO Code
K, M, P
Thread Standard
Metric Fine
Product Description
These taps come in standard sizes expressed in millimeters. The black-oxide finish on these taps retains lubricants to improve the taps' wear resistance and chip flow. Black-oxide taps should only be used on ferrous metals.
Item Barcode
Spiral Point Tap,Plug Chamfer,
Name | Item | Description | |
---|---|---|---|
Grainger Dropship | 53NC51 | Spiral Point Tap,Plug | |
UNSPSC CODES | 23241615 | ||
VMRS (ATA) CODES | 053-006-009 | Spiral Point Tap,Plug |
