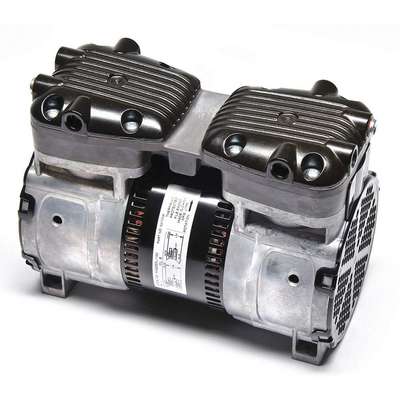

1/2 HP Rocking Piston Air Compressor, 115/120, 230/240, 50/125 Max. PSI Cont./Int.

Item Number 927210-8
Scanner Description Rocking Piston Air Comp,1/2 Hp,
Weight 21.99 lb
Brand GAST
Pkg Qty: 1

Add to List

Technical Specifications

Brand GAST   Pack Quantity 1

Product Description

  • Shipping Weight 21.99 lbs.
Country of Origin USA Country of Origin is subject to change.


  • Item Rocking Piston Air Compressor
  • HP 1/2
  • Voltage 115/120, 230/240
  • Hz 50/60
  • Phase 1
  • Full Load Amps 5.7/2.8
  • Inlet Size 1/4" NPT
  • Outlet Size 1/4" NPT
  • Max. PSI Cont./Int. 50/125
  • Free Air CFM @ 0 PSI 4.20
  • Free Air CFM @ 20 PSI 3.5
  • Free Air CFM @ 40 PSI 2.8
  • Free Air CFM @ 50 PSI 2.6
  • Free Air CFM @ 100 PSI 1.8
  • Max. Vacuum 25" Hg
  • Free Air CFM @ 0 In. Hg 4.00
  • Free Air CFM @ 10 In. Hg 2.80
  • Free Air CFM @ 20 In. Hg 1.0
  • Overall Length 9-5/8"
  • Overall Width 5-1/8"
  • Overall Height 7-1/8"
  • Cylinder Material Aluminum
  • Number of Cylinders 2
  • Motor Type Electric
  • RPM 1725/1425
  • Sound Rating 65 dBA
  • Design Rocking Piston
  • Lubrication Type Oil-Less
  • Finish Black
  • Valve Stainless Steel
  • Standards CUR. CE
  • Temp. Range 5 Degrees to 40 Degrees F
  • Thermal Protection Automatic
  • Power Cord No
  • Application Industrial
Item Barcode
9272108
  Name Item Description
Grainger Dropship Grainger Dropship 36XD64
UNSPSC CODES UNSPSC CODES 40151601
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Rocking Piston Air
