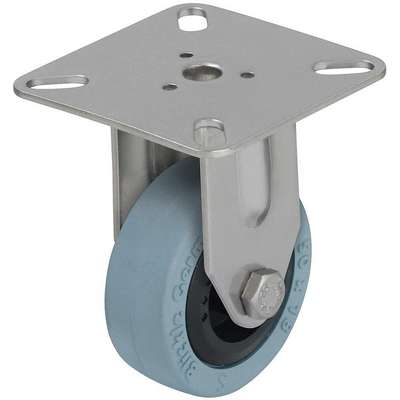

Corrosion-Resistant Standard Plate Caster: 2 in Wheel Dia., 85 lb, Rigid Caster

Hover over image to magnify
Rgd Plate Caster,Rubber,2 In.,
PI_Asset_947818
Rgd Plate Caster,Rubber,2 In.,
PI_Asset_947818

#927158-1 | Pkg Qty: 1

$20.05 pkg | $20.05 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Load Rating
110 lb.
Caster Brake Included
No
Mfr. Part Number
BPXA-VPA 50G
Caster Brake Type
No Brake Included
Mounting Bolt Diameter
1/4 in.
Caster Core Material
Nylon
Mounting Height
2-13/16 in.
Caster Load Rating Range
Medium Duty
Non-Marking
No
Caster Plate Hole Pattern
B
Number of Mounting Holes
4
Caster Plate Size
2-3/8 in. x 2-3/8 in.
Number of Wheels
1
Caster Swivel Lock Type
No Lock Included
Outside Bolt Hole Spacing
1-7/8 in. x 1-7/8 in.
Caster Wheel Bearings
Plain
Package Quantity
1
Caster Wheel Shape
Standard
Plate Caster Sub-Type
Rigid
Caster Wheel/Tread Material
Rubber
Replacement Wheel
Mfr. No. VPA 50/8G
Core Color
Gray
Shipping Weight
.34 lb.
Durometer
80 Shore A
Wheel Color
Gray
Frame Finish
Stainless Steel
Wheel Diameter
2 in.
Frame Material
Stainless Steel
Wheel Width
3/4 in.
Inside Bolt Hole Spacing
1-1/2 in. x 1-1/2 in.
Wheel/Tread Hardness Rating
Soft
Item
Corrosion-Resistant Standard Plate Caster
General
Application
Food Service, Medical and Institutional Equipment
Standards
DIN EN 12564, ISO 14001, ISO 5001, ISO 9001
Caster Frame Material
Stainless Steel
Swivel Lock Type
No Lock Included
Caster Plate Thickness
3/32"
Tread Shape
Standard
Caster Product Group
Rigid Caster
Wheel Bearing Type
Plain
Load Rating Range
0 to 299 lb
Wheel Core Material
Nylon
Mounting Bolt Dia.
1/4 in
Wheel Dia.
2 in
Mounting Plate Bolt Hole Pattern
B
Wheel/Tread Hardness
80 Shore A
Mounting Plate Size
2 3/8 in x 2 3/8 in
Wheel/Tread Material
Rubber
Mounting Plate Size (Bolt Hole Pattern)
2 3/8 in x 2 3/8 in (B)

Product Description

Corrosion-resistant light-duty standard plate casters have stainless-steel frames that resist rusting, making them suitable for applications where the casters will be exposed to water, steam, cleaning chemicals, washdowns, and saltwater spray. The casters mount onto the bottom of carts, dollies, tables, and similar equipment that will be moved manually at moderate speeds. Sometimes called institutional plate casters, these light-duty standard plate casters are best suited for applications where they will be transporting relatively light loads along smooth, flat surfaces and won't encounter shock loading, such as laundry rooms, laboratories, food-processing plants, restaurants, medical buildings, and plant nurseries.

Standard plate casters have kingpins that securely join the casters' mounting plates to their frames. They are used in nearly every industry and are the most common type of caster used for general purpose applications. The casters' mounting plates install onto the bottom of machinery, carts, or other equipment, and the casters allow the equipment to roll to reduce effort when moving or repositioning it. These casters are available in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters will often be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
