DAYTON

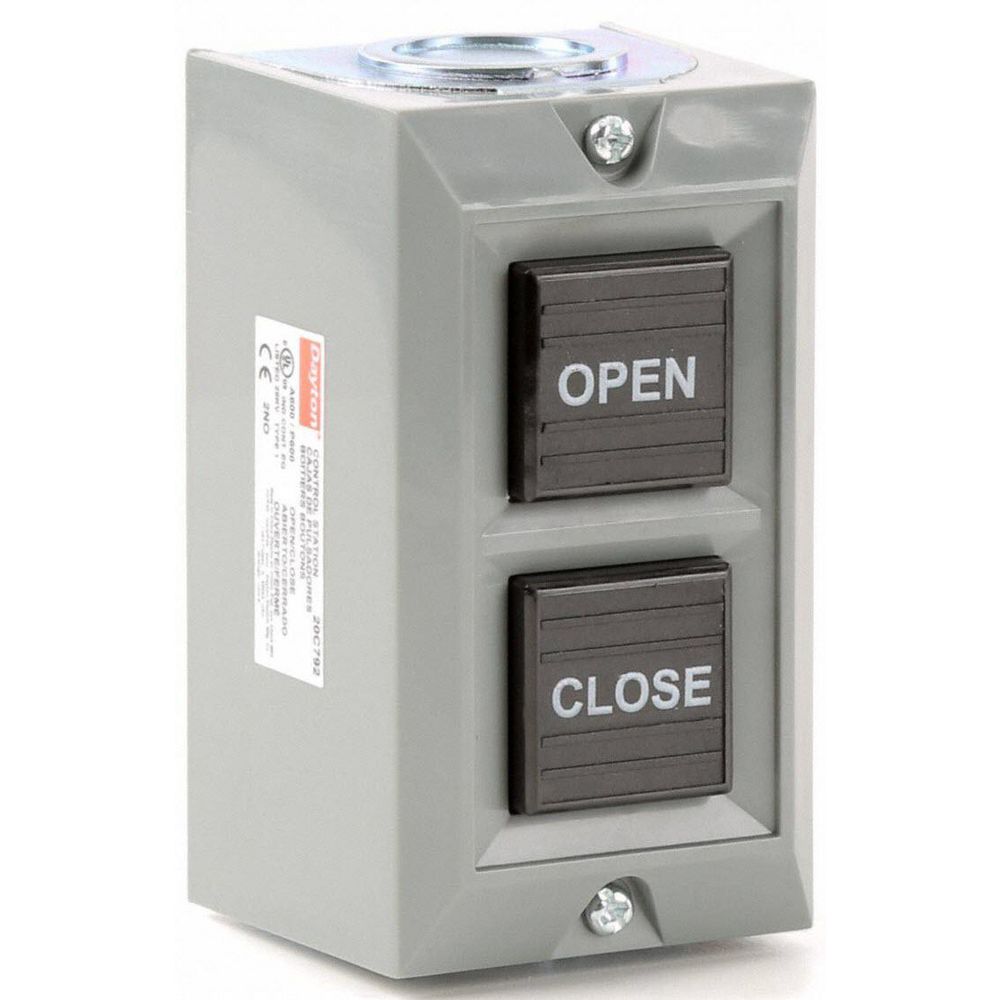

Dayton Push Button Control Station, 2NO Contact Form, Number of Operators: 2

Hover over image to magnify
Push Buttn Cntrol Station,2NO,
PI_Asset_1367658
Push Buttn Cntrol Station,2NO,
PI_Asset_1367658

#927145-6 | Pkg Qty: 1

$61.55 pkg | $61.55 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Action
Momentary/Momentary
Material of Construction
ABS/PC Cover
Brand
DAYTON
Mechanical Interlock
No
Contact Form
2NO
Mfr. Part Number
20C792
Contact Rating
10 A @ 600 VAC, 5 A @ 24 VDC
Mounting
Wall
Contact Type
2NO
NEMA Contact Rating Designation
A600/P600
Depth
2.06 in.
NEMA Rating
1
Enclosure Color
Gray
Number of Operators
2
Enclosure Material
Glass Filled Polyester
Operator Color
Black
Head Material
Plastic
Package Quantity
1
Height
2.19 in.
Product Size
25 mm
Hub
1/2 in. to 3/4 in. NPT
Shipping Weight
.85 lb.
IP Rating
40
Size
25 mm
Item
Push Button Control Station
Type of Operator
Push Button/Push Button
Legend
Open/Close
Voltage
600 VAC/DC
Legend Markings
Open/Close
Width
3.69 in.
Length
3.74 in.
General
Standards
UL508, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1,

Product Description

Push Button Control Station, Number of Operators 2, Size 25 mm, Legend Open/Close, Type of Operator Push Button/Push Button, Action Momentary / Momentary, Operator Color Black, Contact Form 2NO, Mechanical Interlock No, NEMA Rating 1, Contact Rating 10A @ 600V AC, 5A @ 24V DC, NEMA Contact Rating Designation A600/P600, IP Rating 40, Mounting Wall, Hub 1/2 in to 3/4 in NPT, Height 2.19 in, Width 3.69 in, Depth 2.06 in, Head Material Plastic, Enclosure Material Glass Filled Polyester

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
9271456
Push Buttn Cntrol Station,2NO,
 NameItemDescription
Grainger DropshipGrainger Dropship20C792Push Buttn Cntrol
UNSPSC CODESUNSPSC CODES39121104
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Push Buttn Cntrol
