Air Compressor Pressure Switch; Range: 60 to 232 psi, Port Type: (4) Port, (1) 3/8" FNPT, (3) 1/4" F

Zoom Icon
Secondary Item Image
Secondary Product Video

#927107 | Pkg Qty: 1

$87.30 pkg | $87.30 ea
Item Number 927107
Scanner Description Pressure Switch,3PST,140/175
Inventory Status Drop Ship Item
Weight 1.65 lb
Brand CONDOR USA, INC

Technical Specifications

AC Contact Rating
30A @ 240V
Mfg Part Number
31KGXEXX
Action
Standard
NEMA Rating
1
Actuation Type
Diaphragm
Number of Ports
4
Amps
30
Pack Quantity
1
Application
Air Compressor
Phase
Single/Three
Brand
CONDOR USA, INC
Port Type
4-Port (1) 3/8 in. and (3) 1/4 in. FNPT
Burst Pressure
580 psi
Pressure Range (PSI)
60 to 232
Contact Form
3PST
Pressure Switch Action
Standard
Contact Type
3PST
Pressure Switch Application
Air Compressor
Differential
30 to 110 psi
Pressure Switch Differential
30 to 110 psi
Differential Pressure (PSI)
30 to 110
Pressure Switch Electrical Contact Form
3PST
Enclosure
NEMA 1
Pressure Switch Factory On/Off Setting
140/175 psi
Factory On/Off Setting
140/175 psi
Pressure Switch Port Type
(4) Port, (1) 3/8 in. FNPT, (3) 1/4 in. FNPT
Factory On/Off Setting (PSI)
140 to 175
Pressure Switch Range
60 to 232 psi
HP @ 1 Phase - 120V
2
Pressure Switch Unloader
1/4 in. Compression
HP @ 1 Phase - 230V
5
Range
60 to 232 psi
HP @ 1 Phase - 240V
5
Series
MDR3
HP @ 3 Phase - 230V
7-1/2
Special Features
7.5 (11) kW Switching Capacity, 35 Bar Maximum Cut-Out Pressure
HP @ 3 Phase - 240V
7-1/2
Standards
UL Listed, CSA and CE Certified
HP @ 3 Phase - 460V
15
Temp. Range
-22° to 257°F
HP @ 3 Phase - 480V
15
Temp. Range (F)
-22 to 257
IP Rating
54
Type
Air Compressor
Item
Pressure Switch
Unloader
1/4 in. Compression
Manual Switch Action
None

Product Description

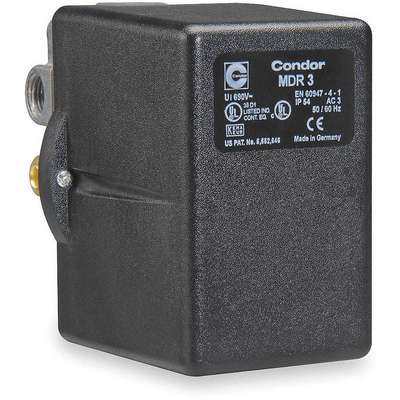

This pressure switch is designed for use with air compressors. It features an actuation-type diaphragm.
