SPEEDAIRE

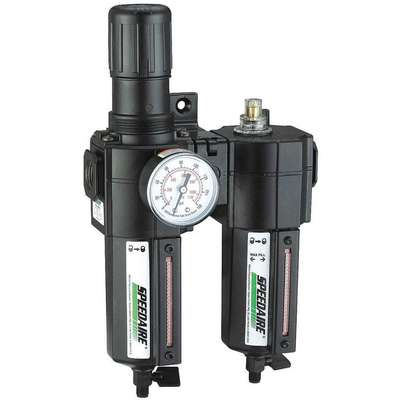

1/2" NPT Filter/Regulator/Lubricator with 5 to 150 psi Adjustment Range
Hover over image to magnify
#927103-6 | Pkg Qty: 1
$262.78 pkg | $262.78 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SPEEDAIRE
Package Quantity
1
Item
Filter/Regulator/Lubricator
Shipping Weight
5.22 lb.
Mfr. Part Number
7D732
General
Adjustment Range
5 to 150 psi
For Substance Type
Air
Adjustment Range - Air Treatment
5 to 150 psi
Includes
Mounting Brackets, Pressure Gauge
Air Inlet Type
NPT
Lubricator Bowl Capacity
7 oz
Air Outlet Size
1/2 in
Lubricator Bowl Material
Metal
Air Outlet Type
NPT
Lubricator Type
Mist
Bowl Material - Air Treatment
Metal with Sight Glass
Lubricator Type Included
Mist
Bowl Size - Air Treatment
7.0 oz
Max. Flow - Air Treatment
192 cfm
Connection Size - Air Treatment
1/2 in NPT
Max. Flow Range - Air Treatment
151 to 200 cfm
Filter Bowl Capacity
7 oz
Max. Incoming Pressure - Air Treatment
250 psi
Filter Bowl Material
Metal
Maximum Regulated Pressure
150 psi
Filter Rating - Air Treatment
5 micron
Minimum Regulated Pressure
5 psi
For Fluid Type
Air
Product Description
This 2-pc. unit combines filter/regulator with a Mist lubricator. Modular connector allows easy removal and swap out. For filter/regulator, the CFM flow is measured with 90 psig inlet adjusted to a set pressure of 90 psig (while increasing flow) and a 15 psig drop. For lubricator, the CFM is based on 90 psig inlet and 5 psig pressure drop.
Expertly Selected Product Pairings
Item Barcode
Frl,1/2 In. NPT,192 Cfm,250 PSI
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 7D732 | FRL,1/2 In. NPT,192 cfm, |
 | UNSPSC CODES | 27131604 | |
 | VMRS (ATA) CODES | 053-006-009 | FRL,1/2 In. NPT,192 cfm, |
