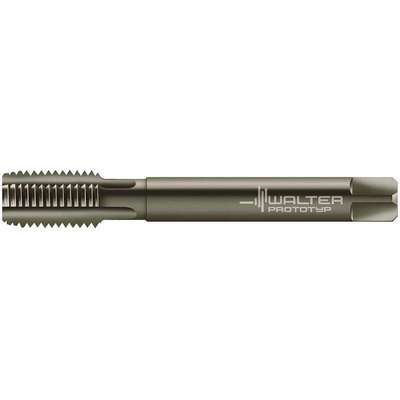

M24-1.50, Tap, Right Hand, Plug, 5 Flutes, High Speed Steel, Steam Oxide/Nitride Tap Finish
Hover over image to magnify
#927091-6 | Pkg Qty: 1
$164.75 pkg
| $164.75 ea
Technical Specifications
Key Specifications
Brand
WALTER PROTOTYP
Shipping Weight
.29 lb.
Cutting Direction
Right
Spiral Direction
Neutral
Drill Size
22-1/2 mm
Square Size
14-1/2 mm
Item
Straight Flute Tap
Subgroup | Tap
Straight Flute
List Number
E21364
Tap Chamfer
Modified Bottoming, Semi-Bottoming
Mfr. Part Number
E21364-M24X1.5
Tap Dimension Type
Metric
Number of Flutes
5
Tap Finish
Black Oxide
Number of Pieces
1
Tap Material
High Speed Steel
Overall Length
140 mm
Tap Style
Straight Flute (Hand)
Package Quantity
1
Tap Thread Size
M24x1.5
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Composite, Copper
Tap Thread Type
Metric Fine
Series
Paradur Eco CI
Thread Direction
Right Hand
Shank Diameter
18.00 mm
Thread Length
26 mm
Shank Length
47 mm
General
65% Thread Drill Size
22.73 mm
Standards
DIN 374
75% Thread Drill Size
22.54 mm
Tap Grouping
Individual
Coolant Fed
Non-Coolant Through
Tap Length Standard
DIN 374
Extended Neck
Yes
Tap Shank Standard
DIN 374
Measurement System
Metric
Thread Limit
6HX
Primary Material Application ISO Code
K, N, O
Thread Limit / Class of Fit
6HX
Shank Dia.
18.00 mm
Thread Pitch
1.50mm
Shank Type - Machining
Straight
Thread Standard
Metric Fine
Product Description
The black-oxide finish on these taps retains lubricants to improve the taps' wear resistance and chip flow. Black-oxide taps should only be used on ferrous metals.
Item Barcode
Tap,M24-1.50 Thread Size,Hss,
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 428A79 | Tap,M24-1.50 Thread Size, |
|
UNSPSC CODES | 27112806 | |
|
VMRS (ATA) CODES | 053-006-009 | Tap,M24-1.50 Thread Size, |
