TSUBAKI

Carbon Steel, Single Strand Attachment Link, For Industry Chain Size: C2080H, EA 1

Hover over image to magnify

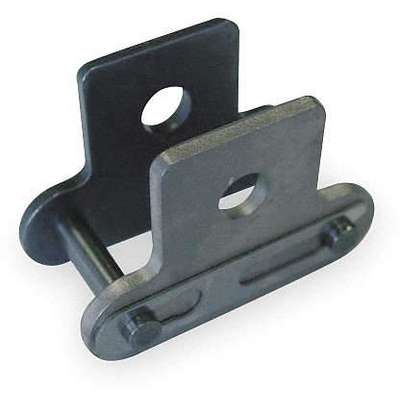

Attachment Link,C2080H,Sk-1
Attachment Link,C2080H,Sk-1

#927046-5 | Pkg Qty: 1

$25.81 pkg | $25.81 ea

Technical Specifications

Key Specifications
Agency Compliance
American National Standards institute (ANSI)
Material
Steel
Brand
TSUBAKI
Mfr. Part Number
C2080HSK1CL
Finish
Plain
Pin Length
1.543 in.
Inside Pin Diameter
0.312 in.
Shipping Weight
.6 lb.
Item
Attachment Link
Tensile Strength
15400 lb.
Lubrication
SAE 10 to SAE 50
General
Attachment Number
SK-1
Number of Strands
Single
Centerline to Attachment End
0.823 in
Number of Tab Holes
1
Centerline to Hole Center
0.72 in
Outside Pin Dia.
0.312 in
Chain Link Material
Carbon Steel
Outside Pin Dia. (In.)
0.312
Chain Link Overall Width
1.543 in
Overall Width (In.)
1.543
Chain Number
C2080H
Pin Contruction
Cottered Pin
Chain Overall Width
1.543 in
Pin Length (In.)
1.543
Chain Roller Dia.
0.625 in
Pin Link Plate Thickness (In.)
0.906
Connecting End to Center Line
0.823 in
Pitch (In.)
2
Connecting End to Center Line (In.)
0.823
Plate Height
0.906 in
Extended Pin Diameter
0.312 in
Plate Thickness
0.625 in
For Chain Number
C2080H
Rivet End to Center Line
0.72 in
For Chain Style
Standard Conveyor Chains
Rivet End to Center Line (In.)
0.720
Industry Chain Pitch
2 in
Roller Chain Link Type
SK-1 Heavy Conveyor
Industry Chain Size
C2080H
Roller Dia. (In.)
0.625
Inside Pin Dia.
0.312 in
Roller Diameter
5/8 in
Inside Pin Dia. (In.)
0.312
Roller Link Plate Height (In.)
0.906
Length (In.)
2.000
Temp. Range
15° to 300°F
Max. Allowable Load
2,400 lb
Tensile Strength (Lb.)
15,400
Max. Allowable Load (Lb.)
2400
Width Between Roller Link Plates
0.625 in
Maximum Operating Temperature
300 °F
Width Between Roller Link Plates (In.)
0.625
Minimum Operating Temperature
15 °F

Product Description

Attachment Link, SK-1 Heavy Conveyor, Industry Chain Size C2080H, Carbon Steel Chain Link Material, Industry Chain Pitch 2 in, Chain Link Overall Width 1.543 in, Chain Roller Dia. 0.625 in, Width Between Roller Link Plates 0.625 in, Roller Link Plate Height 0.906 in, Connecting End to Center Line 0.823 in, Rivet End to Center Line 0.72 in, Pin Length 1.543 in, Inside Pin Dia. 0.312 in, Outside Pin Dia. 0.312 in, Pin Link Plate Thickness 0.906 in, Cottered Pin Type, Max. Allowable Load 2,400 lb
