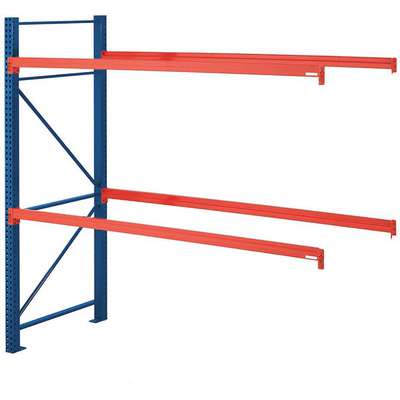

96"W x 42" D x 96"H Steel Pallet Rack Add-On Unit, 22,780 lb.
STEEL KING® teardrop pallet rack add-on unit features hot-rolled structural channel columns specially punched for 2 beam adjustability.
(Note: To help assure that load weight is always evenly distributed over both beams in a shelf level, standard industry practice for palletized load applications is for the upright frame depth to be 6" less than the pallet depth, with 3" of overhang in both front and back of the system. Before selecting a pallet rack, please be sure to check local ordinances for building code and seismic requirements, which may reduce the capacities listed or require factory modifications.)
Upright frame has multiple offset anchor holes to provide flexibility in anchor placement. Footpad with nesting ridge provides easy shim nesting, and flush footpad to column base evenly disperses load weight. Teardrop and rivet design beams feature heavy-duty connection plates for easy installation and greater connection integrity. Auto-engaging safety clip resists beam disengagement and provides an audible click when secured.
• Boltless assembly • Closed tubular columns and braces generate 250% greater durability against fork truck damage • Powder-coat finish for chip- and chemical-resistance
|Grainger Dropship||454T97||Pallet Rack, 96" Overall|
|VMRS (ATA) CODES||053-006-009||Pallet Rack, 96" Overall|
