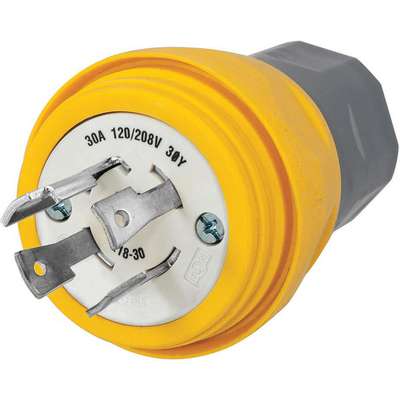

Hubbell Wiring Device-Kellems 30A Industrial Grade Non-Shrouded Watertight Locking Plug, Yellow; NEMA Configuration: L18-30P

Hover over image to magnify
Wt Plug,L18-30P,30A,120/208VAC,
Wt Plug,L18-30P,30A,120/208VAC,
Hubbell Wiring Device-Kellems 30A Industrial Grade Non-Shrouded Watertight Locking Plug, Yellow; NEMA Configuration: L18-30P Video

#926994-7 | Pkg Qty: 1

$105.43 pkg | $105.43 ea
Item Number 926994-7
Scanner Description Wt Plug,L18-30P,30A,120/208VAC,
Inventory Status Drop Ship Item
Weight 0.81 lb
Brand HUBBELL WIRING DEVICE-KELLEMS

Technical Specifications

Amperage
30 A
Mfr. Part Number
HBL28W78
Amps
30
NEMA Configuration
L18-30P
Antimicrobial
No
NEMA Plug Configuration
L18-30P
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Rating
4, 4X, 6, 6P
Color Family
Yellow
Number of Poles
4
Cord Size
0.375 in. to 1.125 in.
Number of Wires
4
Corrosion Resistant
No
Pack Quantity
1
Description
Twist Lock
Phase
3
Grade
Industrial
Shrouded / Non-Shrouded
Non-Shrouded
Horsepower
3
Special Features
Moisture, Dust and Weather Resistant
IP Rating
69K
Standards
UL, CSA, NSF
Item
Watertight Locking Plug
Voltage
120/208 VAC
Material
Thermoplastic Elastomer, Valox
Wiring Style
Standard
Material of Construction
Thermoplastic Elastomer, Valox

Product Description

Feature keyed interior for easy installation and high conductivity brass termination. Also designed with Gotcha® ring and collapsible bushing strain relief. The strain relief nut seals on the body, eliminating areas of debris collection, and provides impact resistance. Unique cone seal prevents dirt and debris from collecting at cable entrance. Triple bypass seal keeps water away from electrical connections. Smooth body design minimizes collection points and simplifies wash down process. Also features cone seal that adjusts to various cable ranges. All stainless steel hardware and corrosion-resistant connection points.

Item Barcode
9269947
  Name Item Description
Grainger Dropship Grainger Dropship 39AW89 WT Plug,L18- 30P,30A,120/
UNSPSC CODES UNSPSC CODES 39121403
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 WT Plug,L18- 30P,30A,120/
