HUBBELL WIRING DEVICE-KELLEMS

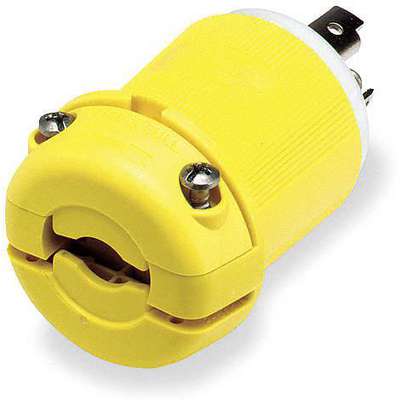

Hubbell Wiring Device-Kellems 30A Marine Grade Non-Shrouded Locking Plug, Yellow; NEMA Configuration: L5-30P

Hover over image to magnify
Plug,125VAC,30A,L5-30P,2P,3W,

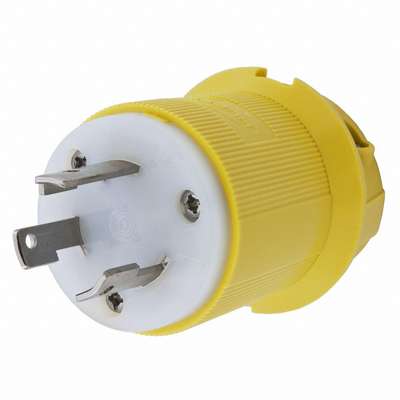

PI_Asset_1983421
Plug,125VAC,30A,L5-30P,2P,3W,
PI_Asset_1983421

#926990-2 | Pkg Qty: 1

$51.85 pkg | $51.85 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amperage
30 A
Maximum Wire Size
8 AWG
Antimicrobial
No
Mfr. Part Number
HBL26CM11
Blade Material
Nickel-Plated Brass
Minimum Operating Temperature
-40 °C
Body Length
2.26 in.
Minimum Wire Size
16 AWG
Boot Code
B
NEMA Configuration - Plugs & Connectors
L5-30
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Plug Configuration
L5-30P
Color Family
Yellow
Number of Blades
3
Connection Orientation
Straight
Number of Poles
2
Cord Size
0.360 in. to 0.930 in.
Number of Wires
3
Corrosion Resistant
Yes
Outside Diameter
2.26 in.
Current Rating
30 A
Overall Length
2.26 in.
Description
Corrosion Resistant
Package Quantity
1
Face Diameter
1.97 in.
Phase
Single
For Maximum Cable Diameter
0.93 in.
Polarized
Yes
For Minimum Cable Diameter
0.36 in.
Shipping Weight
.2 lb.
Grade
Marine
Shrouded
No
Grounding
Grounded
Special Features
Corrosion Resistant
HP
1 HP
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Horsepower
2 hp
Sub-Category
Plugs
Housing Color
Yellow
Type
Plug Twist Lock
Housing Material
Nylon
UL 94 Flammability Rating
HB
IP Rating
IP20
Voltage
125V AC
Item
Locking Plug
Wire Connection Type
Screw Terminals
Material
Nylon
Wiring Style
Standard
Maximum Operating Temperature
75 °C
General
Amps - Plugs and Receptacles
30
NEMA Plug Configuration - Plugs and Receptacles
L5-30P
Grade - Plugs and Receptacles
Marine
Special Features
Corrosion Resistant
HP
1.0
Voltage - Plugs and Receptacles
125V AC

Product Description

NEMA Twist-Lock® Devices

  • Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
