HUBBELL WIRING DEVICE-KELLEMS

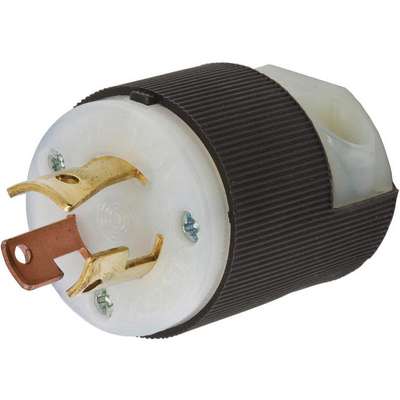

Hubbell Wiring Device-Kellems 15/10A Industrial Grade Non-Shrouded Locking Plug, Black/White; NEMA Configuration: Non-NEMA, 15A

Hover over image to magnify

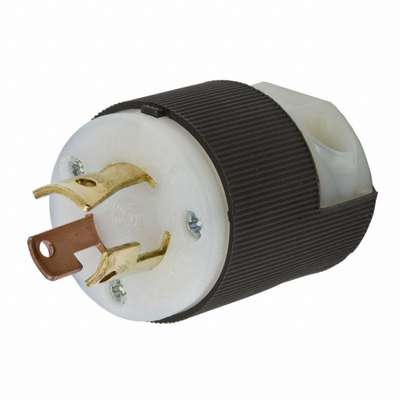

Plug,15/10A,125/250V,3P,3W,1PH
PI_Asset_1983478
Plug,15/10A,125/250V,3P,3W,1PH
PI_Asset_1983478

#926989-5 | Pkg Qty: 1

$38.62 pkg | $38.62 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amperage
15 A
Maximum Operating Temperature
75 °C
Antimicrobial
No
Maximum Wire Size
10 AWG
Blade Material
Brass
Mfr. Part Number
HBL7567C
Body Length
1.53 in.
Minimum Operating Temperature
-40 °C
Body Material
Nylon
Minimum Wire Size
18 AWG
Boot Code
A
NEMA Plug Configuration
Non-NEMA
Brand
HUBBELL WIRING DEVICE-KELLEMS
Number of Blades
3
Color Family
Black / White
Number of Poles
3
Connection Orientation
Straight
Number of Wires
3
Cord Size
0.230 in. to 0.720 in.
Outside Diameter
1.527 in.
Corrosion Resistant
No
Overall Length
1.53 in.
Current Rating
15 A
Package Quantity
1
Description
Insulgrip, Non-Grounding, Non-NEMA
Phase
Single
For Environment
Dry
Polarized
Yes
For Location
Indoor
Shipping Weight
.15 lb.
For Maximum Cable Diameter
0.72 in.
Shrouded
No
For Minimum Cable Diameter
0.23 in.
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596
Grade
Industrial
Subcategory
Plugs
Grounding
Non-Grounded
Type
3 Pole 3 Wire
Housing Material
Nylon
UL 94 Flammability Rating
HB
IP Rating
IP20
Voltage
125/250V AC
Item
Locking Plug
Wire Connection Type
Screw Terminals
Material
Nylon
Wiring Style
Standard
General
Amps - Plugs and Receptacles
15/10
NEMA Plug Configuration - Plugs and Receptacles
15A, Non-NEMA
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
125/250V AC

Product Description

Locking Devices Note: For weatherproof boots for plugs and connectors, see page 618. For NEMA configurations, see page 611.
