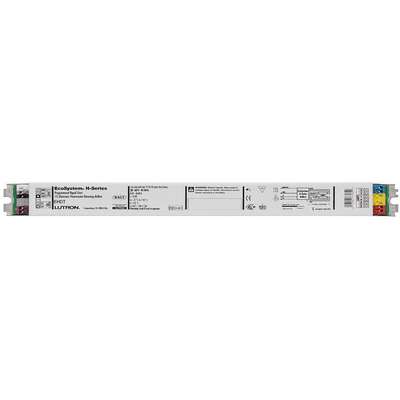

|Mfg Part Number||EHDT521MU210|
- Shipping Weight 0.75 lbs.
- Item Dimming Ballast
- Ballast Type Electronic
- Ballast Start Type Programmed/Rapid
- Ballast Lamp Type T5
- Ballast Family EcoSystem(R) H-Series
- Ballast Max. Number of Lamps 2
- Ballast Voltage 120/220 to 240/277
- Min. Starting Temp. 50 Degrees F
- Amps AC 0.18/0.20/0.41
- Input Watts 48.7/48.6/48.5
- Ballast Max. Lamp Watts 21
- Ballast Item Electronic Ballast
- Ballast Dimming Yes
- Ballast Dimming Type Full Range Continuous Dimming
- Dimming Range 100% to 0.7% Measured RLO
- Standards UL, CSA, 60081-IEC-6530
- Ballast Factor 1
- Power Factor Greater Than 0.95
- Total Harmonic Distortion Less Than 10%
- Length 14-1/8"
- Width 1-3/16"
- Height 1"
- Thermal Protection Class P
- Green Environmental Attribute Product Contributes To Reducing Energy Consumption
- Sound Rating Class A
|VMRS (ATA) CODES||053-006-009||Dimming Ballast,120-|
