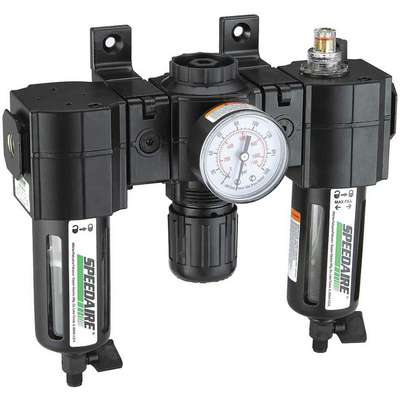

1/2" NPT Filter/Regulator/Lubricator with 5 to 150 psi Adjustment Range
This 3-pc. unit combines filter, regulator, and MicroMist lubricator. Modular connector allows easy removal and swap out. Some assembly required. For filter, the CFM is based on 100 psig inlet and 5 psig pressure drop. For regulator, the CFM flow is measured with 100 psig inlet adjusted to a set pressure of 90 psig (while increasing flow) and a 15 psig drop. For lubricator, the CFM is based on 100 psig inlet and 5 psig pressure drop. Note: Polycarbonate bowls are not recommended for use in atmospheres containing chemicals such as acetone, benzene, carbon tetrachloride, ethylene dichloride, gasoline, toluene, and/or air compressor systems using synthetic fire-resistant lubricants.
|Grainger Dropship||7D715||FRL,1/2 In. NPT,60 cfm,|
|VMRS (ATA) CODES||053-006-009||FRL,1/2 In. NPT,60 cfm,|
