#926916-9 | Pkg Qty: 1
$1,240.13 pkg
| $1,240.13 ea
This item requires special shipping, additional charges may apply.
Technical Specifications
Key Specifications
ADA Compliance
No
Item
Filtration System
Brand
ELKAY
Mfr. Part Number
FD7005L1Z
Color Family
Gray
Mounting
Free-Standing
Depth
12 in.
Operation
Top Push Button
Full Load Amps
3.5A
Package Quantity
1
GPH
5.0 gph
Shipping Weight
53.6 lb.
Height
38 in.
Voltage
120 VAC
Indoor/Outdoor
Indoor
Width
12 in.
Inlet Size
3/8 in. O.D. Tube
General
ADA Compliant
No
Maximum Cold Water Temperature
50 Degrees F
Back Panel Included
Does Not Include Back Panel for Wall-Backed
Maximum Constant Stream Pressure
105 psi
Bi-Level Field Adjustable
No
Minimum Constant Stream Pressure
20 psi
Cold Water Capacity
5 gph
Minimum Supply Line Pressure
20 psi
Cooling Capacity
5 gph @ 50 Degrees F
Mounting Location
Freestanding
Drain Outside Diameter
1 1/4 in
Number of Bubblers
1
Environment
Indoor
Number of Mounting Holes
1
For Use With
Filtered EZH2O® Bottle Filling Station and Cooler Combos
Operating Voltage
115V AC
Fountain Actuation
Top Push Button
Power Consumption
230 W
Fountain Operation
Hand-Operated
Refrigerant Type
R134A
Full Load Current
3.5 A
Refrigeration
Refrigerated
Housing Finish
Vinyl Clad
Standards
ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, NSF 61, NSF 372 (lead free), UL 399
Includes Back Panel
No
Station Type
Single Fountain
Includes Pet Bowl
No
Temperature Adjustment
Factory Set but Adjustable
Includes Water Filter
No
Vandal Resistant
No
Inlet Tube Outside Diameter
1/4 in
Water Filter Included
Non-Filtered
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Product Description

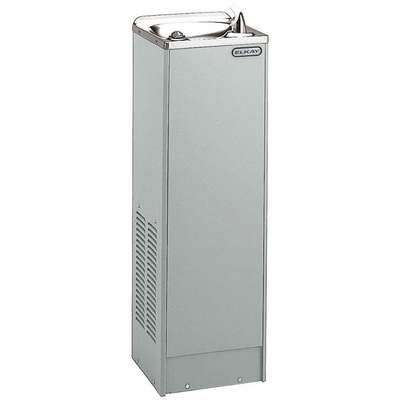

Elkay Space-Ette® floor standing water cooler offers a slim profile for installations with limited space.
- Traditional small footprint floor mount design allows for space-saving installations
- Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms
- Durable vinyl-clad finish
- Rated for indoor use
