#926894-4 | Pkg Qty: 100
Technical Specifications
Key Specifications
General
Product Description

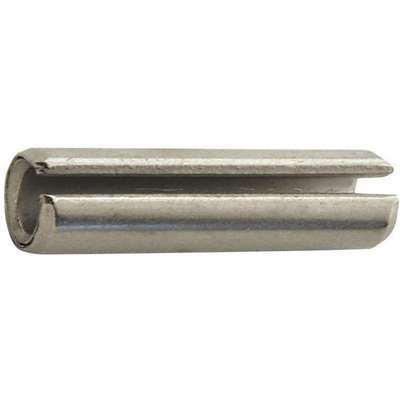

Spring Pin, System of Measurement Inch, Spring Pin Type Slotted, Basic Material Stainless Steel, Material Grade 302, Fastener Finish Passivated, Outside Dia. 3/32 in, Fastener Length 1 1/2 in, Standards AISI 1070 - 1080, Nominal Diameter 3/32 in, Length Tolerance +/-0.020 in, Chamfer Diameter 0.091 in, Wall Thickness 0.022 in, Chamfer Length (Min.) 0.008 in, Chamfer Length (Max.) 0.038 in, Actual Dia. (Min.-Max) 0.099-0.103 in, Fits Hole Dia. (Min.-Max.) 0.094-0.097 in
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 5BU97 | Spring Pin, Slot,1 1/2x3/ |
|
UNSPSC CODES | 31163201 | |
|
VMRS (ATA) CODES | 053-006-009 | Spring Pin, Slot,1 1/2x3/ |
