OSG

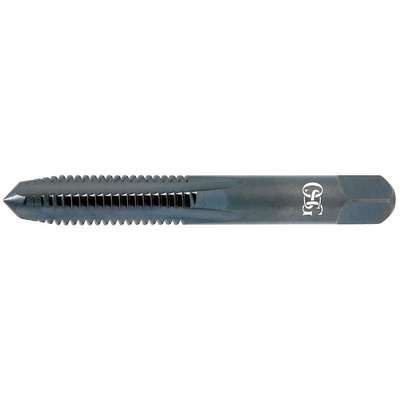

M12-1.25, Tap, Right Hand, Taper, 4 Flutes, High Speed Steel, Bright Tap Finish
Hover over image to magnify
#926887-2 | Pkg Qty: 1
$34.98 pkg | $34.98 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
OSG
Shank Length
34 mm
Cutting Direction
Right
Shipping Weight
.09 lb.
Drill Size
10.70 mm, 10.78 mm, 10.86 mm, 10.94 mm, 11.03 mm
Spiral Direction
Neutral
Finish
Bright
Square Size
6-1/2 mm
Item
Straight Flute Tap
Subgroup | Tap
Straight Flute
List Number
121
Tap Chamfer
Taper
Material
High Speed Steel
Tap Dimension Type
Metric
Mfr. Part Number
871
Tap Finish
Bright (Uncoated)
Number of Flutes
4
Tap Material
High Speed Steel
Number of Pieces
1
Tap Size
M12
Overall Length
82 mm
Tap Style
Straight Flute (Hand)
Package Quantity
1
Tap Thread Size
M12x1.25
Pitch
1.25 mm
Tap Thread Type
Metric Fine
Primary Material Application
All Materials
Thread Direction
Right Hand
Series
121
Thread Length
29 mm
Shank Diameter
8.50 mm
Thread Type
Metric Fine
General
65% Thread Drill Size
10.94 mm
Shank Type - Machining
Straight
75% Thread Drill Size
10.78 mm
Tap Grouping
Individual
Coolant Fed
Non-Coolant Through
Tap Length Standard
JIS
Extended Neck
Yes
Tap Shank Standard
JIS
Measurement System
Metric
Thread Limit
JIS 2
Primary Material Application ISO Code
H, K, M, N, O, P, S
Thread Limit / Class of Fit
JIS 2
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Thread Pitch
1.25mm
Secondary Material Application ISO Code
K, N, P
Thread Standard
Metric Fine
Shank Dia.
8.50 mm
Product Description
The bright finish on these taps provides a smooth, polished surface.
Item Barcode
Tap,Taper,M12-1.25,Bright,4 Flt
