WALTER PROTOTYP

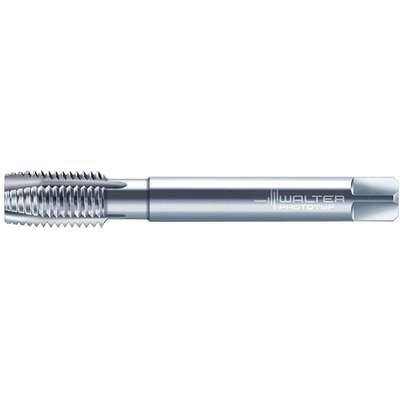

M16-1.00, Tap, Right Hand, Taper, 4 Flutes, High Speed Steel, Uncoated Tap Finish

Hover over image to magnify
Tap,M16-1.00 Thread Size,
Tap,M16-1.00 Thread Size,

#926886-9 | Pkg Qty: 1

$120.97 pkg | $120.97 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
WALTER PROTOTYP
Shipping Weight
.1 lb.
Cutting Direction
Right
Spiral Direction
Neutral
Drill Bit Size
15.00 mm
Square Size
9 mm
Item
Spiral Point Tap
Subgroup | Tap
Spiral Point
List Number
P21360
Tap Chamfer
Plug
Mfr. Part Number
P21360-M16X1
Tap Dimension Type
Metric
Number of Flutes
4
Tap Finish
Bright (Uncoated)
Number of Pieces
1
Tap Material
HSS-E
Overall Length
100 mm
Tap Style
Spiral Point
Package Quantity
1
Tap Thread Size
M16x1.00
Primary Material Application
Steel
Tap Thread Type
Metric Fine
Series
Prototex X.Pert P
Thread Direction
Right Hand
Shank Diameter
12.00 mm
Thread Length
21 mm
Shank Length
42 mm
Thread Type
Metric Fine
General
Class of Fit
H3
Shank Dia.
12.00 mm
Coolant Fed
Non-Coolant Through
Shank Type - Machining
Straight
Extended Neck
Yes
Tap Grouping
Individual
Measurement System
Metric
Thread Limit
6H
Primary Material Application ISO Code
P
Thread Limit / Class of Fit
6H / H3
Secondary Material Application
Aluminum, Brass, Bronze, Composite, Copper
Thread Pitch
1.00 mm
Secondary Material Application ISO Code
N, O
Thread Standard
Metric Fine

Product Description

These taps are designed for tapping steel. They come in standard sizes expressed in millimeters. The bright finish on these taps provides a smooth, polished surface.
