HAMILTON

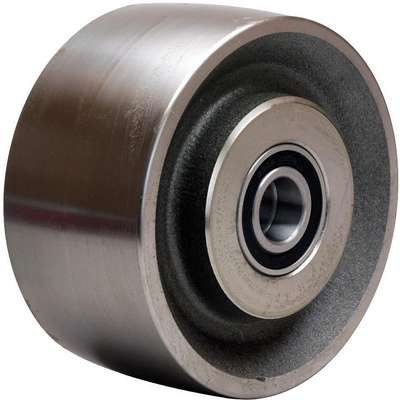

Hamilton 6" Caster Wheel, 4000 lb. Load Rating, Wheel Width 3", Steel, Fits Axle Dia. 3/4

Hover over image to magnify
Caster Wheel,Steel,6 In.,4000
Caster Wheel,Steel,6 In.,4000

#926850 | Pkg Qty: 1

$193.84 pkg | $193.84 ea

Technical Specifications

Key Specifications
Brand
HAMILTON
Item
Caster Wheel
Caster Core Material
Steel
Load Rating
4000 lb.
Caster Load Rating Range
Heavy Duty
Mfr. Part Number
W-630-FSB-3/4
Caster Temperature Range
-40 deg. F to 200 deg. F
Non-Marking
No
Caster Temperature Range Available
Yes
Package Quantity
1
Caster Wheel Bearings
Ball
Replacement For
5VH03
Caster Wheel Shape
Standard
Shipping Weight
20 lb.
Caster Wheel/Tread Material
Steel
Temperature Range
-30 deg. F to 600 deg. F
Core Color
Silver
Wheel Bearings
Precision Ball
Core Material
Steel
Wheel Color
Silver
Durometer
179 BHN
Wheel Diameter
6 in.
Fits Axle Diameter
3/4 in.
Wheel Material
Steel
Hub Length
3-1/4 in.
Wheel Width
3 in.
General
Bore Dia.
3/4"
Load Rating Range
3,000 to 5,999 lb
Core Width
3 1/4 in
Tread Shape
Standard
Fits Axle Dia.
3/4 in
Wheel Bearing Type
Precision Ball
For Axle Size
3/4 in
Wheel Core Material
Steel
Hub Width
3-1/4"
Wheel Dia.
6 in
Includes
Spanner Bushing
Wheel/Tread Hardness
179 BHN
Includes Spanner Bushing
Not Included
Wheel/Tread Material
Steel

Product Description

Steel tread wheels are made from hot-forged steel to create a strong wheel with excellent shock resistance. They can bear heavier loads than iron wheels. Steel wheels are suitable for moving extra-heavy loads on floors that are in poor condition. They are used in warehouses, manufacturing plants, and other industrial environments. Steel will rust if exposed to water, so these wheels are best suited for dry environments.

Metal tread wheels offer very high weight capacities and can withstand shock, abrasion, impact, rough use, and exposure to temperature extremes. The wheels' tread and core are manufactured as one piece from the same material. These wheels are suitable for use on carts, racks, trucks, trolleys, and similar equipment that will be carrying heavy loads over broken floors or debris. Metal tread wheels are heavier than wheels with rubber or plastic treads and are more likely to damage floors.

Item Barcode
9268500
Caster Wheel,Steel,6 In.,4000
  Name Item Description
Grainger Dropship Grainger Dropship 4DU74 Caster Wheel, Steel,6 in.,
UNSPSC CODES UNSPSC CODES 31162701
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Caster Wheel, Steel,6 in.,
