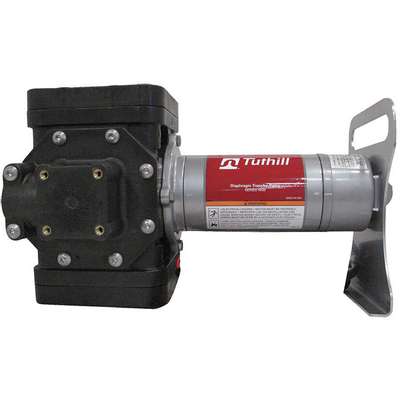

1/4HP Polypropylene Glass Filled Polypropylene Electric Operated Drum Pump, 13 GPM, 360 to 2600 RPM
Hover over image to magnify
#926838-1 | Pkg Qty: 1
$894.91 pkg | $894.91 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SOTERA
Metered
No
DEF Compatible
Yes
Mfr. Part Number
SS415BX731PG
Discharge Tube Outlet ID Size
1"
Mfr. Warranty Length
1 yr.
Discharge Tubing Material
EPDM
Motor Enclosure
TENV
Duty Cycle
Intermittent
Motor RPM
360 to 2600
Food Grade
No
Motor Type
DC Permanent Magnet
For Use On
Chemicals
Outlet Size
1"
Full Load Amps
20
Overall Length
18 in.
GPM
13
Pack Quantity
1
Horsepower
1/4
Phase
1
Hose Length
12 ft.
Piston
Santoprene
Hose Material
EPDM
Piston Material
Santoprene
Housing Material
Glass Filled Polypropylene
Power Source
Electric
Hz
60
RPM
360 to 2600
Inlet Size
1" NPT
Seal Material
Fluorocarbon
Item
Electric Operated Drum Pump
Shipping Weight
32.45 lb.
Maximum Air Inlet PSI
15
Suction Tube Length
39 in.
Maximum GPM for Oil
12
Suction Tube Type
Polypropylene
Maximum GPM for Water
15
Type
Diaphragm
Maximum Head
34 ft.
Variable Speed
No
Maximum Liquid Temperature
130°F
Voltage
12 VDC
Maximum Pressure
15 psi
Wetted Materials
Fluorocarbon, Polypropylene, Santoprene, Stainless Steel
Maximum Viscosity
3000 CPS
pH Range
3.6 to 11.9
General
Application
Diesel Exhaust Fluid, Solvents, Cleaners, Degreasers, Deionized Water, Caustics
Includes Discharge Hose
Yes
Compatible Chemicals
Fertilizers, Fungicides, Herbicides, Motor Oil
Includes Nozzle
Yes
Diesel Exhaust Fluid Compatible
No
Includes Suction Tube
Yes
Discharge Connection Type
NPT
Max. Flow Rate
13 gpm
Discharge Tube Outlet ID
3/4 in
Max. Fluid Temp.
130 Degrees F
Discharge Tube Outlet OD
1 in
Max. Head - Pumps
34 ft
For Container Size
55 gal
Max. Outlet Pressure
15 psi
For Container Type
Drum
Noise Level
77 db
For Media Type
Fertilizers, Fungicides, Herbicides, Motor Oil
Nominal Voltage
12V DC
For Use With
Caustics, Cleaners, Degreasers, Deionized Water, Diesel Exhaust Fluid, Solvents
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, DEF, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Ethylene Glycol, Formic Acid, Fresh Water, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Xylene
Frequency (Hz)
60
Nozzle Operation
Manual
Hose Cover Material
EPDM
Number of Phases
1
Hose Inside Dia.
3/4 in
Pump Connection ID
1 in
Hose Outside Dia.
1 in
Pump Connection OD
1 1/4 in
Hose Tube Material
EPDM
Pump Connection Type
FNPT
Housing Material - Pumps
Polypropylene
Pump Package Type
Unmetered Dispensing with Manual Shut-Off
Includes
1 in Ball Valve Nozzle, 2 in Female Camlock Coupler with 2 in Female NPT Threads, 2 in NPT to 2 in Buttress Adapter, 2 in x 1 in Poly Reducer Bushing, 20 ft Battery Cable with Clips, 30A Fuse, Poly Telescoping Suction Tube
Rated Voltage
12V DC
Includes Bung Adapter
No
Runs Dry
Yes
Product Description
Agricultural electric drum pumps withstand contact with agricultural products such as fertilizers, herbicides, pesticides, and fungicides. They typically run on DC voltage so they can be powered by farm equipment batteries for use in the field or remote locations where an electrical outlet is not available. They're commonly used when dispensing, transferring, and applying large amounts of agricultural chemicals in farming, gardening, and landscaping applications.
