CLE-LINE

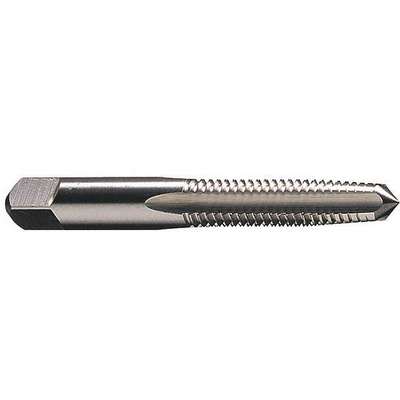

#8-36, Tap, Right Hand, Taper, 4 Flutes, High Speed Steel, Bright Tap Finish

Hover over image to magnify
Tap,Inch,#8-36 Thread Size,
Tap,Inch,#8-36 Thread Size,

#926836-5 | Pkg Qty: 1

$9.22 pkg | $9.22 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
CLE-LINE
Shank Length
1-3/8 in. in.
Cutting Direction
Right
Shipping Weight
.1 lb.
Cutting Direction
Right Hand
Spiral Direction
Neutral
Drill Size
#29
Square Size
0.131 in.
Item
Straight Flute Tap
Subgroup | Tap
Straight Flute
List Number
401
Tap Chamfer
Taper
Material
High Speed Steel
Tap Dimension Type
Inch
Mfr. Part Number
C00725
Tap Finish
Bright (Uncoated)
Number of Flutes
4
Tap Material
High Speed Steel
Number of Pieces
1
Tap Style
Straight Flute (Hand)
Overall Length
2-1/8 in.
Tap Thread Size
#8-36
Pack Quantity
1
Tap Thread Type
UNF
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Thread Direction
Right Hand
Series
401
Thread Length
3/4 in.
Shank Diameter
5/32 in.
Thread Size
#8-36
General
65% Thread Drill Size
9/64 in
Tap Grouping
Individual
Class of Fit
2B
Tap Length Standard
USCTI
Extended Neck
Yes
Tap Shank Standard
USCTI
Measurement System
Pipe
Thread Limit
H2
Primary Material Application ISO Code
K, N, P
Thread Limit / Class of Fit
H2 / 2B
Shank Dia.
5/32 in
Thread Standard
UNF
Shank Type - Machining
Straight
Threads per Inch
36
Standards
USCTI Table 302

Product Description

The bright finish on these taps provides a smooth, polished surface.
