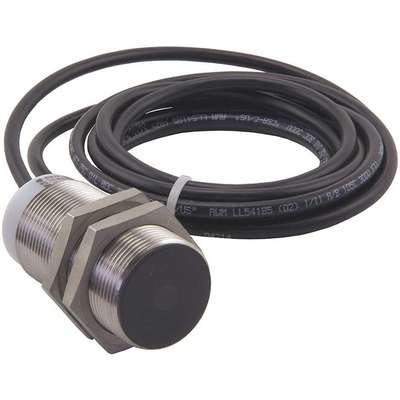

Eaton 600 Hz Inductive Cylindrical Proximity Sensor with Max. Detecting Distance 10.0 mm

Hover over image to magnify
Proximity Sensor,10mm Detect
Proximity Sensor,10mm Detect

#926834-9 | Pkg Qty: 1

$201.97 pkg | $201.97 ea
Item Number 926834-9
Scanner Description Proximity Sensor,10mm Detect
Inventory Status Drop Ship Item
Weight 0.35 lb
Brand EATON

Technical Specifications

Basic Material
Metal
Operating Frequency
600 Hz
Basic Proximity Sensor Case Material
Metal
Operating Temperature Range
-40 to 158F
Brand
EATON
Output Mode
NC
Case Material
Stainless Steel
Pack Quantity
1
Circuit Type
3 Wire PNP
Power Requirement
10 to 48VDC
Depth
30 mm
Proximity Sensing Method
Inductive
Description/Special Features
Proximity Switch-Performance
Proximity Sensor Diameter
30.0 mm
Detecting Distance
10mm
Proximity Sensor Electrical Connection
2m Cable
Diameter
30 mm
Proximity Sensor Operating Frequency
600 Hz
Electrical Connection
2m Cable
Proximity Sensor Output Circuit Type
3 Wire PNP
IP Rating
69K
Proximity Sensor Power Requirement
10 to 48 VDC
Item
Cylindrical Proximity Sensor
Proximity Sensor Style
Cylindrical Proximity Sensor
Length
68 mm
Sensing Method
Inductive
Maximum Current Load
300mA
Shielded/Unshielded
Shielded
Maximum Detecting Distance
10 mm
Standards
cCE Compliance
Mfr. Part Number
E57P-30SPC10-C2
Width
30 mm
NEMA Rating
4X

Product Description

Cylindrical Proximity Sensor, Inductive, 30.0 mm, Proximity Sensor Power Requirement 10 to 48V DC, Shielded, Proximity Sensor Operating Frequency 600 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 10.0 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, NEMA Rating 4X, IP Rating 69K, Case Material Stainless Steel, Length 68 mm, Operating Temp. Range -40 Degrees to 158 Degrees F, Max. Current Load 300mA

Item Barcode
9268349
  Name Item Description
Grainger Dropship Grainger Dropship 45KL23 Proximity Sensor,10mm
UNSPSC CODES UNSPSC CODES 41111926
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Proximity Sensor,10mm
