CLE-LINE

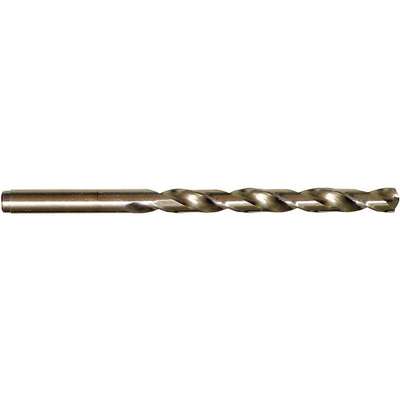

Jobber Drill Bit, 5.00mm, Cobalt Steel, Black/Gold, List Number 1891

Hover over image to magnify
Jobber Drill Bit,5.00mm Size,
Jobber Drill Bit,5.00mm Size,
Jobber Drill Bit, 5.00mm, Cobalt Steel, Black/Gold, List Number 1891 Video
Jobber Drill Bit, 5.00mm, Cobalt Steel, Black/Gold, List Number 1891 Video

#926831-5 | Pkg Qty: 1

$3.90 pkg | $3.90 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
CLE-LINE
Item
Jobber Length Drill Bit
Coolant Through
Non-Coolant Through
Jobber Length Basic Material
Cobalt
Cutting Direction
Right
List Number
1891
Decimal Equivalent
0.1969
Maximum Drilling Depth
3/4 in.
Depth x Diameter Ratio
4xD
Mfr. Part Number
C18940
Drill Bit Dimension Type
Metric
Number of Flutes
2
Drill Bit Finish
Straw/Bronze
Overall Length
86 mm
Drill Bit Material
Cobalt Steel
Package Quantity
1
Drill Bit Point Angle
135 deg.
Point Type
Split Point
Drill Bit Size
5.00 mm
Series
1891
Drill Point Length
0.0408 mm
Shank Diameter
5 mm
Finish
Straw/Bronze
Shank Length
34 mm
Flute Length
52 mm
Shank Type
Straight
Flute Type
Spiral
Shipping Weight
.02 lb.
Grade
Heavy Duty
Spiral Direction
Right Hand
Helix Angle
21 to 34
General
Application
For Alloy, Stainless Steel, Titanium, Manganese Steel, Armor Plate
Material - Machining
Cobalt
Coolant Fed
Non-Coolant Through
Material Grade - Machining
High Performance
Depth:Dia. Ratio
4xD
Measurement System
Metric
Drill Bit Grouping
Individual
Primary Material Application ISO Code
H, K, N, P, S
Drill Bit Point Type
Split Point
Shank Dia.
5 mm
Drill Diameter Tolerance
+0.0000 in /-0.0007 in
Shank Type - Machining
Straight
Drill Length Class
Jobber Length
Standards
ASME B94.11M
Finish - Machining
Straw/Bronze

Product Description

These drill bits have a straw/bronze finish that improves their wear resistance. They also have spiral flutes that evacuate chips as the bits drill into a workpiece.

Item Barcode
9268315
Jobber Drill Bit,5.00mm Size,
 NameItemDescription
Grainger DropshipGrainger Dropship53PR63Jobber Drill Bit,5.00mm
UNSPSC CODESUNSPSC CODES23241634
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Jobber Drill Bit,5.00mm

For more product information by email, click here
