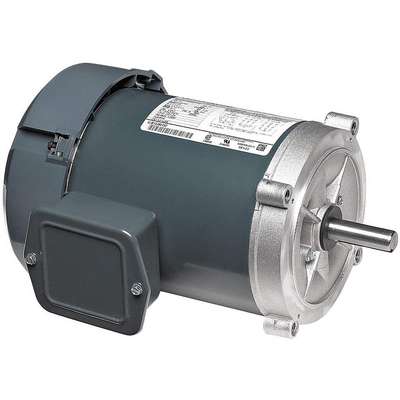

2 HP Jet Pump Motor, 3-Phase, 3450 Nameplate RPM, 230/460 Voltage, 56J Frame

Item Number 926819-4
Scanner Description Jet Pump Motor,3-Phase,2 Hp,5.
Weight 45.14 lb
Brand MARATHON MOTORS
Pkg Qty: 1
$417.00 pkg | $417.00 ea

Add to List

Technical Specifications

Brand MARATHON MOTORS   Pack Quantity 1
Mfg Part Number 056T34F99028

Product Description

  • Shipping Weight 45.145 lbs.
Country of Origin Mexico Country of Origin is subject to change.


  • Item Jet Pump Motor
  • Motor Application Pump
  • Motor Sub Application Jet Pump
  • Motor Design 3-Phase
  • Motor Enclosure Design Totally Enclosed Fan-Cooled
  • HP 2
  • Nameplate RPM 3450
  • Frame 56J
  • Motor Shaft Rotation CW/CCW
  • Voltage 230/460
  • Full Load Amps 5.0/2.5
  • Phase 3
  • Hz 60/50
  • Motor Mounting Type Face
  • Motor Mounting Position All Angle
  • Motor Bearings Ball
  • Motor Thermal Protection None
  • Motor Service Factor 1.25
  • Max. Ambient Temp. 40 Degrees C
  • Shaft Dia. 5/8"
  • Shaft Length 2-9/16"
  • Motor Shaft Design Threaded
  • Shaft Material 303 Stainless Steel
  • Overall Length 14-13/16"
  • Body Dia. 6-1/2"
  • Ins. Class F
  • RPM Range 3001-3600
  • Duty Continuous
  • Motor Efficiency Group NEMA Premium Efficient
  • Nominal Efficiency 78.5%
  • CC Number CC003A
  • Standards UL (E49747), CSA (LR2025), CE Approved
Item Barcode
9268194
  Name Item Description
Grainger Dropship Grainger Dropship 53DE40
UNSPSC CODES UNSPSC CODES 40151511
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Jet Pump Motor,3-
