#926815-5 | Pkg Qty: 1
$15.26 pkg
| $15.26 ea
Technical Specifications
Key Specifications
AC Contact Rating
20 A @ 480 V
Maximum Pretravel
0.051 in.
Actuator Length
1.94 in.
Mfr. Part Number
5JEE9
Actuator Type
Plunger, Short
Mounting Dimension
1.00 in. Centers
Basic Actuator Type
Plunger
Number of Circuits
1
Brand
APPROVED SUPPLIER
Operating Force
22.03 oz.
Contact Form
SPDT
Operating Temperature Range
-1 deg. F to 185 deg. F
Contact Type
1 NO, 1 NC
Over Travel
0.118 in.
Current Rating
20A
Release Force
10.00 oz.
Differential Travel
0.008 in.
Series
Z
Electrical Connection
Screw
Shipping Weight
.07 lb.
Height
1.45 in.
Snap Action Switch Type
Industrial Snap Action Switch
Housing Material
Phenolic Case and Cover
Type of Actuator
Short Spring Plunger
Item
Industrial Snap Action Switch
Voltage
125 - 250 - 480 VAC
Length
1.94 in.
Voltage Rating
125/250/480 VAC
Lever Actuator Length
Not Applicable
Width
1.94 in.
General
AC Contact Rating - Snap Action Switch
20 A @ 480 V
Mounting Dimension - Snap Action Switch
1.00 in Centers
Actuator Type - Snap Action Switch
Plunger, Short
Number of Circuits - Snap Action Switch
1
Basic Actuator Type - Snap Action Switch
Plunger
Operating Temp. Range
-13° to 185°F
Contact Form- Switches
SPDT
Watertight - Snap Action Switch
No
Electrical Connection - Snap Action Switch
Screw
Width - Snap Action Switch
1.94 in
Height - Snap Action Switch
1.45 in
Product Description

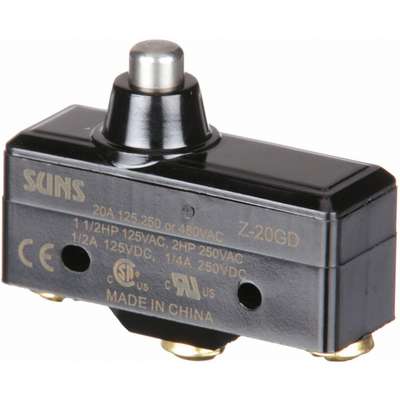

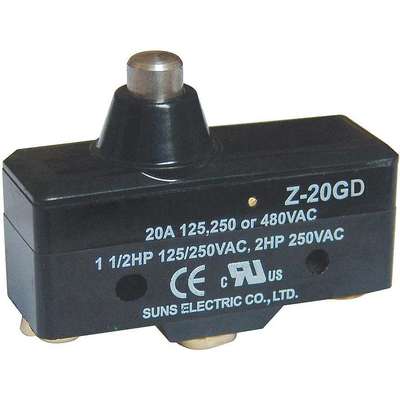

This snap switch features a short spring plunger actuator.
Item Barcode
Swch,20A,1 No,1 Nc,Shrt Spring
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 5JEE9 | Swch,20A,1 NO,1 NC,Shrt |
|
UNSPSC CODES | 39122209 | |
|
VMRS (ATA) CODES | 053-006-009 | Swch,20A,1 NO,1 NC,Shrt |
