ATCO

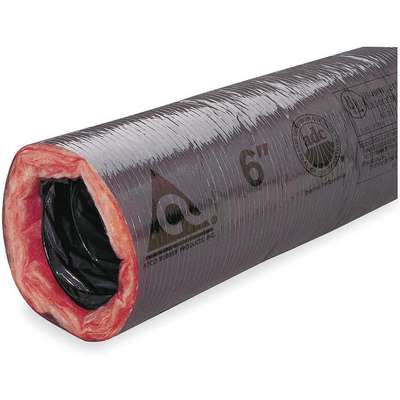

Atco Insulated Flexible Duct, R 6.0, 6" Flexible Duct Inside Dia., 2" Flexible Duct Wall Thickness
Hover over image to magnify
#926814-1 | Pkg Qty: 1
$72.61 pkg | $72.61 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
UL181, NFPA 90A & 90B, IMC, IRC, UMC 10-1 (ICC ES Report No. ESR-1268), HUD, Cities of Chicago, New York, San Francisco, County of Dade (Florida), California State Fire Marshall.
Material
Polyester
Brand
ATCO
Mfr. Part Number
17602506
Inside Diameter
6 in.
Package Quantity
1
Item
Insulated Flexible Duct
Shipping Weight
10.45 lb.
Length
25 ft.
Wall Thickness
2 in.
General
Flexible Duct Inside Dia.
6 in
Max. Air Flow
5,000 fpm
Flexible Duct Length
25 ft
Max. Pressure
10 in WC
Flexible Duct Wall Thickness
2 in
Max. Temp.
180â°F
For Use With
Heating and Cooling Systems
UPC Number
76
Low Temp. Deg.
-20 Degrees F
Vapor Transmission
0.6
Product Description
Features double-ply vapor barrier with tridirectional reinforcements. Rated for indoor use.
- Rated positive pressure: 10" WC per UL 181
- Velocity: 5,000 fpm
- Flame spread/smoke developed: 25 / 50
