BROAN

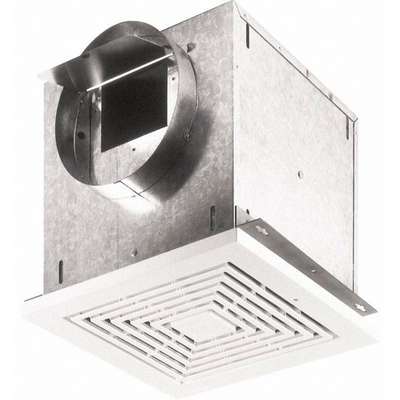

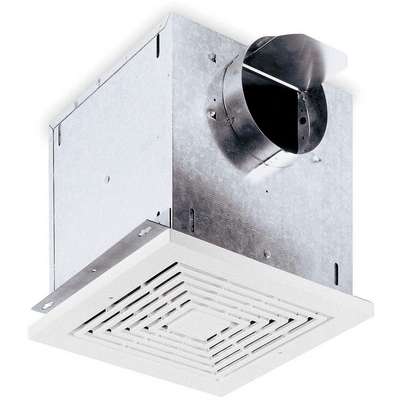

Broan Ceiling Ventilator, 1 Phase, Ceiling or Wall Mounting Position, 231 CFM @ 0.000-In. SP, 120VAC

Hover over image to magnify
Fan,Losone,200 Cfm
PI_Asset_965019
PI_Asset_965020
Fan,Losone,200 Cfm
PI_Asset_965019
PI_Asset_965020

#926737-2 | Pkg Qty: 1

$253.59 pkg | $253.59 ea

Technical Specifications

Key Specifications
Brand
BROAN
Motor Enclosure
Open
Duct Diameter
8 in.
Motor RPM
740
Housing Height
11-3/4 in.
Motor Type
Shaded Pole
Housing Length
12-1/4 in.
Mounting Position
Ceiling or Wall
Housing Material
Galvanized Steel
Package Quantity
1
Housing Width
12-1/4 in.
Shipping Weight
20.75 lb.
Item
Ceiling Ventilator
Voltage
120 VAC
Mfr. Part Number
L200
General
Blower Wheel Material
Polymeric
Includes Grill
Yes
CFM @ 0.000-In. SP
231
Lighted
Without Light
Discharge Direction
Horizontal and Vertical
Maximum Airflow
231 cfm
Duct Shape
Round
Maximum Noise Level
1.7 sones
Exhaust Airflow @ 0.000 in SP
231 cfm
Motor Speed
740 RPM, 760 RPM
Exhaust Airflow @ 0.100 in SP
214 cfm
Nameplate Voltage
120V AC
Exhaust Airflow @ 0.250 in SP
196 cfm, 197 cfm
Noise Level @ 0.000 in SP @ 5 ft
1.6 sones
For Use With
General Ventilation Applications
Noise Level @ 0.100 in SP @ 5 ft
1.8 sones
Full Load Current
1.8 A
Noise Level @ 0.125 in SP @ 5 ft
2 sones

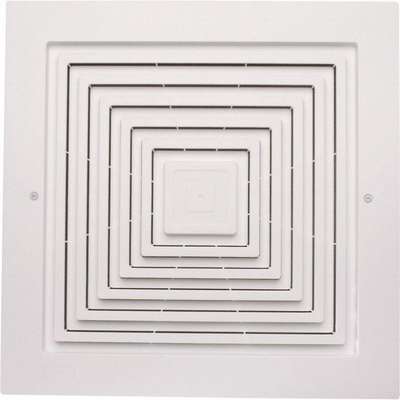

Grille Finish
Painted Enamel
Noise Level @ 0.250 in SP @ 5 ft
2.3 sones
Grille Length
14 in
Nominal Voltage
115V AC
Grille LxW
14 in x 14 in
Overall HxWxD
11 3/4 in x 12 1/4 in x 12 1/4 in
Grille Material
Polymeric
Profile Height Family
High
Grille Type
Plastic
Profile Width Family
Single-Wide
Grille Width
14 in
Roomside Installation
No
Heater
Without Heater
Sones @ 0.000-In. SP @ 5 Ft.
1.6
Includes
Automatic Backdraft Damper
Vent Design
Ducted

Product Description

Offering a quiet solution for continuous ventilation needs, this high-capacity, low-vibration fan is ideal for conference rooms, public restrooms, and other commercial building applications. It can be ducted horizontally or vertically, and in-line ducting is available with a separate adapter. Features include a low-profile grille, an 8" round duct connector, a heavy-duty motor, and a single, impact-resistant centrifugal blower wheel. Use an electronic variable speed control, available separately, to adjust blower speed and sound level.

Compliance & Restrictions

State ship exclusion
Shipping Exclusions: NJ
Item Barcode
9267372
Fan,Losone,200 Cfm
  Name Item Description
Grainger Dropship Grainger Dropship 4TR48 Fan,Losone, 200 CFM
UNSPSC CODES UNSPSC CODES 40101502
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Fan,Losone, 200 CFM
