BRYANT

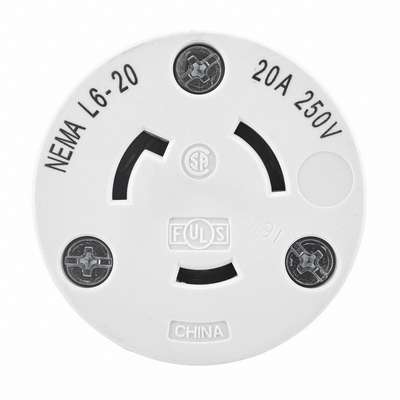

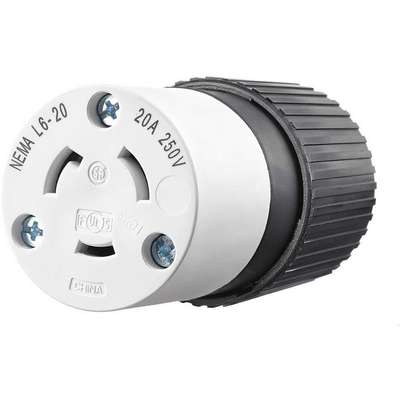

Bryant 20 Amp Industrial Grade Locking Connector, L6-20R NEMA Configuration, Black/White
Hover over image to magnify
#926726-3 | Pkg Qty: 1
$32.99 pkg | $32.99 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
20 A
Midget Locking
No
Amps
20 A
Minimum Operating Temperature
-40 °C
Antimicrobial
No
Minimum Wire Size
18 AWG
Brand
BRYANT
NEMA Configuration - Plugs & Connectors
L6-20
Cap Type
No Cap or Cover
NEMA Plug Configuration
L6-20R
Color Family
Black / White
NEMA Receptacle Configuration
L6-20R
Connection Orientation
Straight
Number of Poles
2
Cord Size
0.300 in to 0.655 in
Number of Wires
3
Corrosion Resistant
No
Overall Length
2.13 in.
Current Rating
20 A
Package Quantity
1
For Environment
Dry
Phase
Single
For Location
Indoor
Polarized
Yes
Grade
Industrial
Power Indicating Light
No
Grounding
Grounded
Power Indicator
No
Housing Material
Nylon
Shipping Weight
.33 lb.
IP Rating
IP20
Shrouded
No
Item
Locking Connector
Standards
CSA Certified, UL Listed
Material
Nylon
Voltage
250VAC
Maximum Operating Temperature
75 °C
Voltage Rating
250V AC
Maximum Wire Size
8 AWG
Wire Connection Type
Screw Terminals
Mfr. Part Number
70620NC
Wiring Style
Standard
General
Amps - Plugs and Receptacles
20
NEMA Plug Configuration - Plugs and Receptacles
L6-20R
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
250V AC
Product Description
Nylon device is chemical- and impact-resistant. Incorporates a true, one-piece grounding system. Plugs and Connectors are polarized and moisture-resistant. Receptacles are single locking.
Item Barcode
Locking Connector,Black/White,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 49YW97 | Locking Connector, |
 | UNSPSC CODES | 39121421 | |
 | VMRS (ATA) CODES | 053-006-009 | Locking Connector, |
