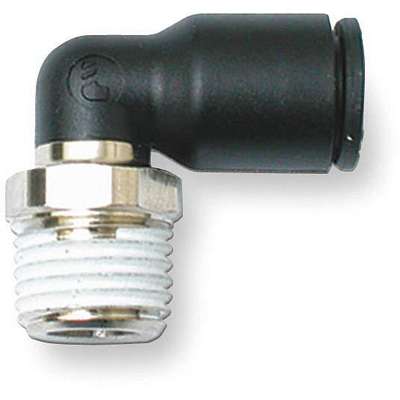

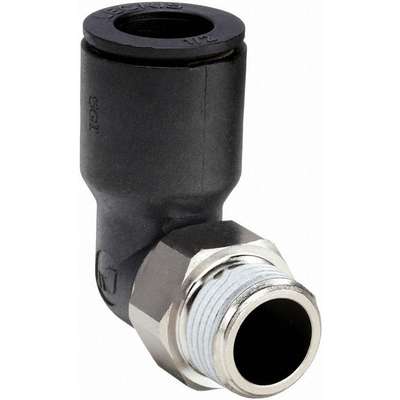

Male Elbow: Nylon, Push-to-Connect x MBSPT, For 1/2 in Tube OD, 3/8 in Pipe Size, Black, 10 PK
Hover over image to magnify
#926723-3 | Pkg Qty: 10
$231.10 pkg
| $23.11 ea
Technical Specifications
Key Specifications
Basic Material
Plastic/Metal Combination
Material of Construction
Glass Filled Nylon And Nickel Plated Brass
Body Material
Glass Filled Nylon and Nickel Plated Brass
Maximum Pressure
290 psi
Brand
LEGRIS
Mfr. Part Number
3109 62 17
Color Family
Black
Package Quantity
10
Connection Type
Tube x Male BSPT
Pipe Size
3/8 in.
Hex Size
20 mm
Pneumatics Fittings Sub-Category
Elbows
Item
Male Elbow, 90°
Shipping Weight
.8 lb.
General
Compatible Tube Hardness
95 Shore A
For Tube OD
1/2 in
End Connection Type
Push-to-Connect, Threaded
For Tube Outside Diameter
1/2 in
Fitting Pipe Size
3/8 in
Includes Pre-Applied Thread Sealant
Yes
Fitting Side A Connection Type
Push-to-Connect
Metal Detectable
Yes
Fitting Side A Tube Outer Diameter
1/2 in
Pipe Size - Pipe Fitting
3/8 in
Fitting Side B Connection Type
MBSPT
Resistance Properties
Chemical-Resistant, Corrosion-Resistant
Fitting Side B Pipe Size
3/8 in
Specific Fitting Shape
90° Elbow Adapter
Product Description
Glass-Filled Nylon Push-To-Connect Fittings
- Max. operating pressure: 290 psi Temp. range: -4° to 175°F Pkg. qty.: 10, unless otherwise noted Stainless steel gripping ring provides a secure, leak-free connection without tools; disconnects easily with the plastic release button. All threaded elbows, tees, and Y's swivel around the threaded, nickel-plated base for easy installation. Fitting bodies are a composite material—nylon and nickel-plated brass. Thread sealant is preapplied to all tapered threads. Buna N elastomer seals. Can be used with all pneumatic machines, as well as for food-processing, packaging equipment, textile machinery, robotics, and semiconductor applications. Use with semirigid nylon, flexible polyurethane, polyethylene, and PTFE tubing.
