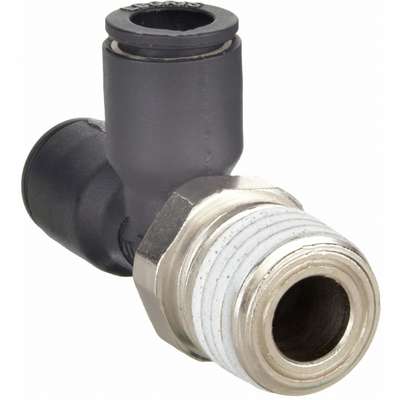

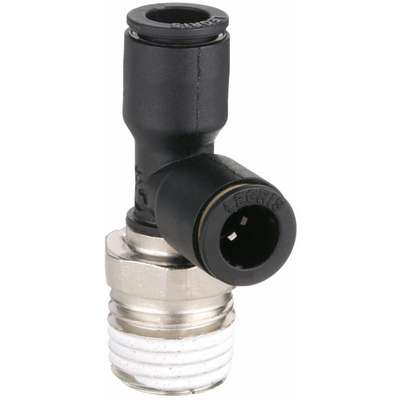

Male Run Tee: Nylon, Push-to-Connect x Push-to-Connect x MNPT, For 3/8 in x 3/8 in Tube OD, 10 PK
Hover over image to magnify
#926723-2 | Pkg Qty: 10
$178.00 pkg
| $17.80 ea
Technical Specifications
Key Specifications
Basic Material
Plastic/Metal Combination
Material of Construction
Glass Filled Nylon And Nickel Plated Brass
Body Material
Glass Filled Nylon and Nickel Plated Brass
Maximum Pressure
290 psi
Brand
LEGRIS
Mfr. Part Number
3103 60 22
Color Family
Black
Pack Quantity
10
Connection Type
Tube x MNPT
Pipe Size
1/2 in.
Hex Size
22 mm
Pneumatics Fittings Sub-Category
Tees
Item
Male Run Tee
Shipping Weight
1.15 lb.
General
End Connection Type
Push-to-Connect, Threaded
For Tube OD
3/8 in x 3/8 in
Fitting Pipe Size
1/2 in
For Tube Outside Diameter
3/8 in
Fitting Side A Connection Type
Push-to-Connect
Includes Pre-Applied Thread Sealant
Yes
Fitting Side A Tube Outer Diameter
3/8 in
Metal Detectable
Yes
Fitting Side B Connection Type
Push-to-Connect
Pipe Size - Pipe Fitting
1/2 in
Fitting Side B Tube Outer Diameter
3/8 in
Resistance Properties
Chemical-Resistant, Corrosion-Resistant
Fitting Side C Connection Type
MNPT
Specific Fitting Shape
Adapter Tee
Fitting Side C Pipe Size
1/2 in
Product Description
Glass-Filled Nylon Push-To-Connect Fittings
- Max. operating pressure: 290 psi Temp. range: -4° to 175°F Pkg. qty.: 10, unless otherwise noted Stainless steel gripping ring provides a secure, leak-free connection without tools; disconnects easily with the plastic release button. All threaded elbows, tees, and Y's swivel around the threaded, nickel-plated base for easy installation. Fitting bodies are a composite material—nylon and nickel-plated brass. Thread sealant is preapplied to all tapered threads. Buna N elastomer seals. Can be used with all pneumatic machines, as well as for food-processing, packaging equipment, textile machinery, robotics, and semiconductor applications. Use with semirigid nylon, flexible polyurethane, polyethylene, and PTFE tubing.
Documents
Item Barcode
Male Run Tee,3/8 In Od,290 Psi,
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 1PEU1 | Male Run Tee, 3/8 In OD, |
|
UNSPSC CODES | 40183102 | |
|
VMRS (ATA) CODES | 053-006-009 | Male Run Tee, 3/8 In OD, |
