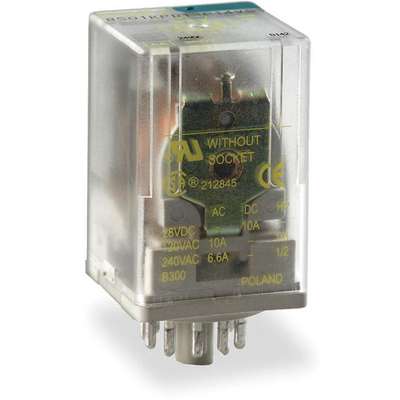

120VAC Coil Volts, General Purpose Relay, 10A @ 277VAC/10A @ 28VDC Contact Rating, Octal

120VAC Coil Volts, General Purpose Relay, 10A @ 277VAC/10A @ 28VDC Contact Rating, Octal
Plug In Relay,8 Pins,Octal,
PI_Asset_1370455
120VAC Coil Volts, General Purpose Relay, 10A @ 277VAC/10A @ 28VDC Contact Rating, Octal Video

#926719-3 | Pkg Qty: 1

$87.50 pkg | $87.50 ea
Item Number 926719-3
Scanner Description Plug In Relay,8 Pins,Octal,
Inventory Status Drop Ship Item
Weight 0.2 lb
Brand SQUARE D

Technical Specifications

AC Contact Rating
10A @ 277V
Item
General Purpose Relay
Base Type
Octal
Mfr. Part Number
8501KPR12P14V20
Body Depth
1.4 in.
Mounting
Plug In
Body Height
2.1 in.
Number of Pins
8
Body Width
1.4 in.
Number of Poles
2
Brand
SQUARE D
Overall Height
2.6 in.
Coil VA Rating
2-1/2
Pack Quantity
1
Coil Volts
120VAC
Pins
8
Contact Amp Rating (Resistive)
10A
Plug-In Relay Style
General Purpose
Contact Form
DPDT
Push To Test
No
Contact Form - Relay
DPDT
Relay Power Consumption
3.0VA
Contact Material
Silver Tin Oxide
Socket
Mfr. No. 8501NR51 or 8501NR52
Contact Rating
10A @ 277VAC/30VDC
Socket Code
A
DC Contact Rating
10A @ 28V
Standards
UL Listed, CSA Certified, CE Marked
HP @ 120V
1/3
Status Indicator
LED
HP @ 240V
1/2
Warranty
5ZZX3
Input Power Consumption (Burden)
2.5VA

Product Description

General Purpose Relay, Coil Volts 120V AC, AC Contact Rating - Relay 10A @ 277V, DC Contact Rating - Relay 10A @ 28V, Base Type - Plug In Relay Octal, Number of Pins - Relay 8, Contact Form - Relay DPDT, Mounting - Relay Plug In, Socket Code - Relay A, Power Consumption - Relay 3.0 VA, Contact Material Silver Tin Oxide, Status Indicator LED, Push To Test No

Item Barcode
9267193
  Name Item Description
Grainger Dropship Grainger Dropship 2DT03 Plug In Relay,8 Pins,
UNSPSC CODES UNSPSC CODES 39121515
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Plug In Relay,8 Pins,
