OSG

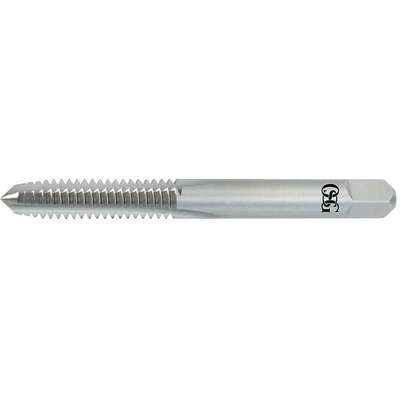

#10-32, Tap, Right Hand, Bottoming, 2 Flutes, High Speed Steel, Oxide Tap Finish
Hover over image to magnify
#926682-4 | Pkg Qty: 1
$9.84 pkg | $9.84 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
OSG
Shank Length
1-7/32 in. in.
Cutting Direction
Right
Shipping Weight
.02 lb.
Cutting Direction
Right Hand
Spiral Direction
Neutral
Drill Size
0.1575 in., 0.1596 in., 0.1616 in., 0.1636 in., 0.1656 in.
Square Size
0.151 in.
Finish
Steam Oxide
Subgroup | Tap
Straight Flute
Item
Straight Flute Tap
Tap Chamfer
Bottoming
List Number
104
Tap Dimension Type
Inch
Material
High Speed Steel
Tap Finish
Black Oxide
Mfr. Part Number
1074401
Tap Material
High Speed Steel
Number of Flutes
2
Tap Size
#10
Number of Pieces
1
Tap Style
Straight Flute (Hand)
Overall Length
2-11/32 in.
Tap Thread Size
#10-32
Pack Quantity
1
Tap Thread Type
UNF
Pitch
32
Thread Direction
Right Hand
Pitch Diameter Limits
H3
Thread Length
11/16 in.
Primary Material Application
All Materials
Thread Size
#10-32
Series
104
Thread Type
UNF
Shank Diameter
3/16 in.
General
55% Thread Drill Size
4.25 mm
Shank Type - Machining
Straight
65% Thread Drill Size
4.15 mm
Standards
ANSI
Coolant Fed
Non-Coolant Through
Tap Grouping
Individual
Extended Neck
Yes
Tap Length Standard
ANSI
Measurement System
Pipe
Tap Shank Standard
ANSI
Primary Material Application ISO Code
H, K, M, N, O, P, S
Thread Limit
H3
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Thread Limit / Class of Fit
H3
Secondary Material Application ISO Code
K, N, P
Thread Standard
UNF
Shank Dia.
3/16 in
Threads per Inch
32
Product Description
The black-oxide finish on these taps retains lubricants to improve the taps' wear resistance and chip flow. Black-oxide taps should only be used on ferrous metals.
Item Barcode
Tap,Bottoming,#10-32,Oxide,2
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 33YU65 | Tap, Bottoming, |
 | UNSPSC CODES | 23241615 | |
 | VMRS (ATA) CODES | 053-006-009 | Tap, Bottoming, |
