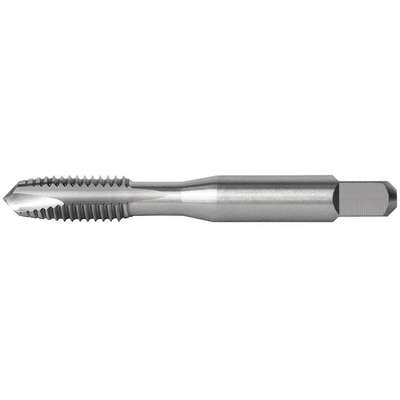

Hover over image to magnify
#926678-5 | Pkg Qty: 1
$15.21 pkg
| $15.21 ea
Technical Specifications
Key Specifications
Brand
CLEVELAND
Shipping Weight
.01 lb.
Cutting Direction
Right
Spiral Direction
Neutral
Cutting Direction
Right Hand
Square Size
0.11 in.
Drill Bit Size
#43
Subgroup | Tap
Spiral Point
Item
Spiral Point Tap
Tap Chamfer
Plug
List Number
1011
Tap Dimension Type
Inch
Material
High Speed Steel
Tap Finish
Bright (Uncoated)
Mfr. Part Number
C57047
Tap Material
High Speed Steel
Number of Flutes
2
Tap Style
Spiral Point
Number of Pieces
1
Tap Thread Size
#4-40
Overall Length
1-7/8 in.
Tap Thread Type
UNC
Pack Quantity
1
Thread Direction
Right Hand
Primary Material Application
All Materials
Thread Length
1/4 in.
Series
1011
Thread Size
#4-40
Shank Diameter
9/64 in.
Thread Type
UNC
Shank Length
1-9/32 in. in.
General
55% Thread Drill Size
3/32 in
Shank Type - Machining
Straight
65% Thread Drill Size
2.30 mm
Standards
USCTI TABLE 302A
75% Thread Drill Size
2.20 mm
Tap Grouping
Individual
Class of Fit
2B
Thread Limit
H1
Extended Neck
Yes
Thread Limit / Class of Fit
H1 / 2B
Measurement System
Pipe
Thread Standard
UNC
Primary Material Application ISO Code
N, P
Threads per Inch
40
Shank Dia.
9/64 in
Product Description
UN coarse (UNC) taps have fewer threads per inch than UN fine (UNF) taps. Compared to UNF taps, UNC taps perform better in threading applications on brittle materials and are less likely to cross thread. Coarse threads can also withstand more physical abuse than fine threads. The bright finish on these taps provides a smooth, polished surface.
