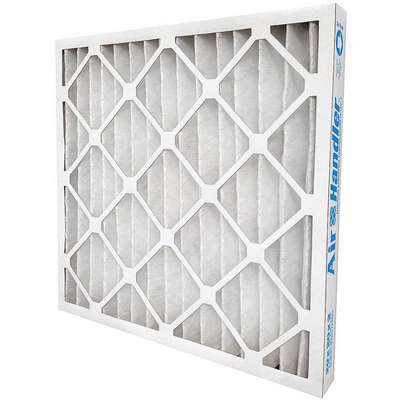

Air Handler LEED/Green Pleated Air Filter, 12x12x1, MERV 13, High Capacity, Synthetic, Beverage Board

Hover over image to magnify
Green Pleat,12x12x1,MERV13
Green Pleat,12x12x1,MERV13
Air Handler LEED/Green Pleated Air Filter, 12x12x1, MERV 13, High Capacity, Synthetic, Beverage Board Video

#926648-5 | Pkg Qty: 12

$218.04 pkg | $18.17 ea
Item Number 926648-5
Scanner Description Green Pleat,12x12x1,MERV13
Inventory Status Drop Ship Item
Weight 2.16 lb
Brand AIR HANDLER

Technical Specifications

Actual Depth
3/4 in.
MERV
13
Actual Height
11-3/4 in.
Maximum Temperature
180 deg. F
Actual Width
11-3/4 in.
Maximum Velocity
500 fpm
Air Flow @ 300 FPM
300 cfm
Media Area
2.3 sq. ft.
Air Flow @ 500 FPM
500 cfm
Media Type
Synthetic
Brand
AIR HANDLER
Mfr. Part Number
11C860
Filter Efficiency
85%
Nominal Depth
1 in.
Filters Out
Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Powder, Most Smoke, Most Tobacco Smoke, Paint Pigments
Nominal Height
12 in.
Frame Color
White
Nominal Width
12 in.
Frame Included
Yes
Pack Quantity
12
Green Environmental
Product Has MERV Rating of 13 or Higher
Removes Particles Down To
1.0 to 3.0 micron
Item
Pleated Air Filter
Standards
UL 900 Classified

Product Description

MERV 13 LEED pleated air filters are designed to meet the air-filtration efficiency criteria required for earning points toward LEED (Leadership in Energy and Environmental Design) Green Building certification. MERV 13 air filters provide close to 90% efficiency for filtering particles between 3 and 10 microns in size (such as mold spores, dusting aids, and cement dust). They also provide between 80% and 85% efficiency for filtering particles between 1 and 3 microns in size (such as legionella, lead dust, humidifier dust, coal dust, and nebulizer droplets) and between 35% and 50% efficiency for filtering particles between 0.30 and 1 micron in size (such as bacteria, most smoke, sneeze nuclei, insecticide dust, copier toner, and face powder). They capture contaminants more efficiently than MERV 12 pleated air filters.

Pleated air filters capture airborne contaminants more effectively than non-pleated air filters because the pleated filter media provides more surface area for trapping contaminants than non-pleated media. These filters are commonly installed in HVAC systems in food and beverage, healthcare, hospitality, education, and industrial facilities to remove contaminants from the air stream and improve the quality of the air. They also prevent the contaminants from building up in the equipment and causing damage to it. The filters are designed to be discarded when they are spent. They typically have a MERV (minimum efficiency reporting value) rating of between 7 and 13. A filter's MERV rating measures how efficiently it removes contaminants from the air stream based on the size of the particles it can effectively capture. The higher the MERV rating is, the more effectively the filter traps small particles.
