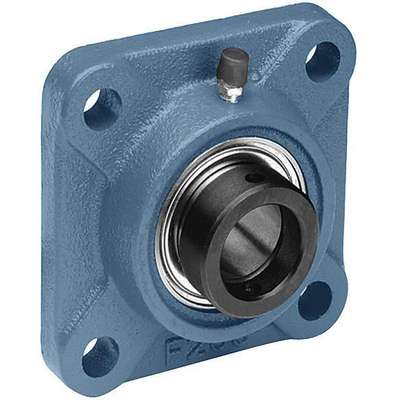

4-Bolt Flange Bearing: 1" Bore Dia., Eccentric Locking Collar, Cast Iron

Hover over image to magnify
Flange Bearing,4-Bolt,Ball,1"
PI_Asset_1762766
Flange Bearing,4-Bolt,Ball,1"
PI_Asset_1762766

#926602-4 | Pkg Qty: 1

$23.46 pkg | $23.46 ea
Item Number 926602-4
Scanner Description Flange Bearing,4-Bolt,Ball,1"
Inventory Status Drop Ship Item
Weight 1.77 lb
Brand TRITAN

Technical Specifications

Key Specifications
Bearing Housing Material Type
Cast Iron
Mfr. Part Number
SAF205-16G
Bearing Insert Material
52100 Chrome Steel
Overall Height
42.9 mm
Bearing Insert Type
Ball
Overall Length
95 mm
Bearing Lubrication
Shell Alvania RL2 or NLGI #2 Equivalent
Overall Width
95 mm
Bolt Hole Center-to-Center
70 mm
Pack Quantity
1
Bolt Size
3/8 in.
Series
SAF
Bore Diameter
1 in.
Shaft Locking Type
Eccentric Locking Collar
Brand
TRITAN
Standards
AFBMA, ISO
Dynamic Load Capacity
3,147 lb.
Static Load Capacity
1764 lb.
Finish
Painted
Temperature Range
-40° to 250°F
Item
4-Bolt Flange Bearing
General
Temp. Range
-40 Degrees to 250 Degrees F

Product Description

4-Bolt Flange Bearing, Ball Bearing Insert Type, 1 in Bore Dia., Bolt Hole Center-to-Center 70 mm, Cast Iron Bearing Housing Material Type, Eccentric Locking Collar Shaft Locking Type, 52100 Chrome Steel Bearing Insert Material, SAF Series, Bolt Size 3/8 in, Overall Height 42.9 mm, Overall Width 95 mm, Overall Length 95 mm, Bearing Lubrication Shell Alvania RL2 or NLGI #2 Equivalent, Dynamic Load Capacity 3,147 lb, Static Load Capacity 1,764 lb, Temp. Range -40 Degrees to 250 Degrees F

Item Barcode
9266024
  Name Item Description
Grainger Dropship Grainger Dropship 36UX82 Flange Bearing,4-
UNSPSC CODES UNSPSC CODES 31171501
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Flange Bearing,4-
