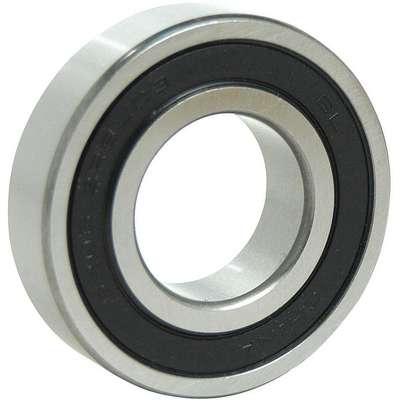

Radial Ball Bearing: 55 mm Bore Dia., 100 mm Outside Dia., 21 mm Width, Double Sealed

Hover over image to magnify
Radial Ball Bearing,Ps,55mm,
PI_Asset_1762511
Radial Ball Bearing,Ps,55mm,
PI_Asset_1762511

#926596-8 | Pkg Qty: 1

$39.20 pkg | $39.20 ea
Item Number 926596-8
Scanner Description Radial Ball Bearing,Ps,55mm,
Inventory Status Drop Ship Item
Weight 1.34 lb
Brand BL

Technical Specifications

ABEC Tolerance
1
Mfr. Part Number
6211 2RS/C3 PRX
Bearing Material
Steel
Outside Diameter
100 mm
Bore Diameter
55 mm
Outside Diameter Tolerance
+0/-0.015mm
Bore Tolerance
+0/-0.015mm
Pack Quantity
1
Brand
BL
Seal Material
Synthetic Rubber Molded to a Steel Plate
Cage Material
Pressed Steel
Seal/Shield Type | Radial Ball Bearings
Double Sealed
Dynamic Load Capacity
9,750 lb.
Single Row/Double Row
Single Row
Industry Number
6211 2RS/C3
Static Load Capacity
6500 lb.
Item
Radial Ball Bearing
Temperature Range
-40° to 350°F
Lubrication
Polyrex EM Grease
Width
21 mm
Maximum RPM
4,200 RPM

Product Description

This radial ball bearing features single-row alignment.

Item Barcode
9265968
  Name Item Description
Grainger Dropship Grainger Dropship 35JA25 Radial Ball Bearing,PS,
UNSPSC CODES UNSPSC CODES 31171504
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Radial Ball Bearing,PS,
