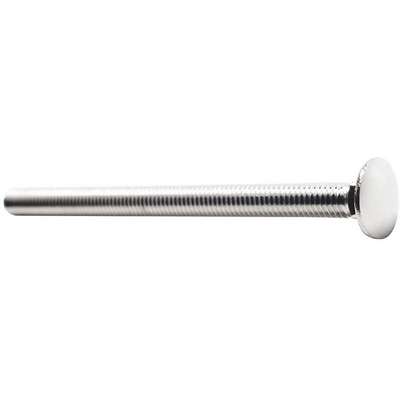

Carriage Bolt: Square, Stainless Steel, 18-8, NL-19, 3/8"-16 Thread Size, 5 1/2 in lg, Inch, 10 PK
Hover over image to magnify
#926572-9Pkg Qty: 10
$46.80 pkg | $4.68 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Basic Material
Stainless Steel
Item
Carriage Bolt
Brand
APPROVED SUPPLIER
Length Under Head
5-1/2 in.
Carriage Bolt Material Grade/Class
18-8
Material
18/8 - 304 Stainless Steel
Carriage Bolt Square Height
0.219 in.
Meets/Exceeds
ANSI B18.5, Thread to Class 2A, ANSI B1.1
Carriage Bolt Square Width
0.388 in.
Mfr. Part Number
FBCB3855P10
Carriage Bolt Thread Style
Fully Threaded
Neck Type
Square Neck
Drill Size
25/64 in.
Package Quantity
10
Fastener Head Diameter
0.844 in.
Shipping Weight
1.54 lb.
Fastener Thread Direction
Right Hand
System of Measurement
Fractional
Finish
NL-19
Thread Size
3/8"-16
Head Type
Carriage
Thread Type
Coarse
Height
0.208 in.
General
For Use With
18-8 Stainless Steel Nuts
Minimum Head Height
3/16 in
Maximum Head Height
13/64 in
Minimum Neck Height
3/16 in
Maximum Neck Height
7/32 in
Minimum Neck Width
3/8 in
Maximum Neck Width
25/64 in
Neck Height
13/64 in
Minimum Head Diameter
25/32 in
Neck Width
3/8 in
Product Description
Carriage Bolt, Inch, Neck Type Square, Basic Material Stainless Steel, Material Grade 18-8, Fastener Finish NL-19(SM), Dia./Thread Size 3/8 In.-16, Fastener Length 5 1/2 in, Fastener Thread Direction Right Hand, Fastener Thread Type UNC (Coarse), Drill Size 25/64 in, Head Dia. 0.844 in, Head Height 0.208 in, Head Type Carriage, Square Height 0.219 in, Square Width 0.388 in, Tensile Strength 100,000 to 125,000 psi, For Use With 18-8 Stainless Steel Nuts, PK 10
