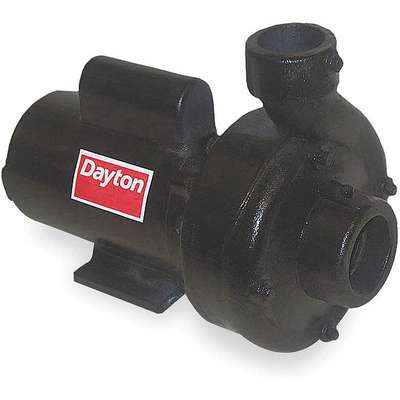

120/240VAC Totally Enclosed Fan-Cooled Straight Center Discharge Pump, 1-Phase, 2-1/2" NPT Inlet Siz

Zoom Icon

120/240VAC Totally Enclosed Fan-Cooled Straight Center Discharge Pump, 1-Phase, 2-1/2" NPT Inlet Siz

#926517-3 | Pkg Qty: 1
$890.00 pkg | $890.00 ea
Item Number 926517-3
Scanner Description Pump,2 Hp,1 Ph,120/240VAC
Inventory Status Drop Ship Item
Weight 90 lb
Brand DAYTON
California Proposition 65 Icon

Technical Specifications

Amps
16.6/8.3
Max. Head
63 ft.
Application
For High Volume Service, For Industrial And Commercial Applications, Such As Process Applications, Dewatering, Irrigation,Chemical Transfer, Decorative Water Features.
Max. Liquid Temperature
180°F
Bearing Type
Ball
Max. Pressure
26.5 psi
Bearings
Ball
Max. Pressure (PSI)
26-1/2
Best Efficiency GPM @ Head
101 gpm @ 48 ft.
Max. Pressure - Pumps
27 psi
Best Efficiency Range GPM @ Head
65 to 33 gpm @ 90 to 140 ft..
Max. Specific Gravity
1
Brand
DAYTON
Min. GPM @ Head
93 gpm @ 50 ft.
Discharge Pressure
Straight Center Discharge Pump
Min. GPM @ Head (Ft.)
93 @ 50
Drain Plug
Easily Accessible
Motor Enclosure
TEFC
Duty
Continuous
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
For Use With
Nonflammable and Non-abrasive Liquids Compatible with Pump Component Materials
Motor RPM
3500
Frame
56J
Motor Type
Capacitor Start
GPM of Water @ 20 Ft. of Head
168
NEMA/IEC Frame
56J
GPM of Water @ 30 Ft. of Head
153
Outlet
2 in. NPT
GPM of Water @ 40 Ft. of Head
130
Outlet Size - Pumps
2 in. NPT
GPM of Water @ 50 Ft. of Head
96.2
Pack Quantity
1
HP (Horsepower)
2
Phase
1
HP - Pumps
2
Phase - Pumps
1
Height
12 in.
Port Rotation
4 Position Increments
Housing Material
Cast Iron
RPM
3500
Housing Material - Pumps
Cast Iron
Screw Material
Zinc Plated
Hz
60
Seal Application
Nonflammable And Nonabrasive Liquids Compatible With Seal Component Materials Up To 180F
Impeller Material
Bronze
Seal Material
Standard, Carbon Ceramic Faces, Buna Elastomer and Stainless Steel Parts
Impeller Type
Enclosed
Seal Type
Mechanical
Inlet
2-1/2 in. NPT
Service Factor
1
Inlet Pressure
100 psi
Shaft Material
Stainless Steel
Inlet Size - Pumps
2-1/2 in. NPT
Type
Straight
Item
Straight Center Discharge Pump
Voltage (V)
115/230
Length
16-1/4 in.
Voltage - Pumps
120/240VAC
Manufacturers Warranty Length
1 yr.
Volute Material
Cast Iron
Max. Dia. Solids
0.40625 in.
Wetted Materials
CI,BR, Carbon, Ceramic, Buna N, Stainless Steel
Max. Fluid Viscosity
100 SSU
Width
9-3/8 in.
Max. GPM @ Head
163 gpm @ 20 ft.

Product Description

  • Shipping Weight 90.0 lbs.
Country of Origin India Country of Origin is subject to change.

Compliance & Restrictions

Prop 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
9265173
  Name Item Description
Grainger Dropship Grainger Dropship 4ZA35 Pump,2 HP,1 Ph,120/240VAC
UNSPSC CODES UNSPSC CODES 40151503
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Pump,2 HP,1 Ph,120/240VAC
