CLE-LINE

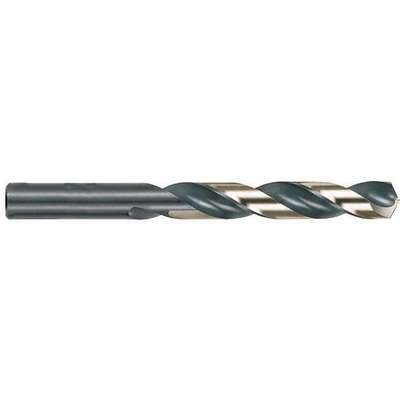

Jobber Drill Bit, 1.50mm, High Speed Steel, Black/Gold, List Number 1878

Hover over image to magnify
Jobber Drill Bit,1.50mm,Hss,
Jobber Drill Bit,1.50mm,Hss,
Jobber Drill Bit, 1.50mm, High Speed Steel, Black/Gold, List Number 1878 Video
Jobber Drill Bit, 1.50mm, High Speed Steel, Black/Gold, List Number 1878 Video

#926507-1 | Pkg Qty: 1

$2.06 pkg | $2.06 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
CLE-LINE
Helix Angle
28
Coolant Through
Non-Coolant Through
Item
Jobber Length Drill Bit
Cutting Direction
Right
Jobber Length Basic Material
High Speed Steel
Cutting Direction
Right Hand
List Number
1878
Decimal Equivalent
0.0591
Maximum Drilling Depth
3/16 in.
Depth x Diameter Ratio
4xD
Mfr. Part Number
C74002
Drill Bit Dimension Type
Metric
Number of Flutes
2
Drill Bit Finish
Black/Gold
Overall Length
40 mm
Drill Bit Material
High Speed Steel
Pack Quantity
1
Drill Bit Point Angle
135 deg.
Point Type
Split
Drill Bit Size
1.50 mm
Series
1878
Drill Point Length
0.0122 mm
Shank Diameter
1 1/2 in.
Finish
Black/Gold
Shank Length
22 mm
Flute Length
18 mm
Shank Type
Straight
Flute Type
Spiral
Shipping Weight
0 lb.
Grade
Heavy Duty
Spiral Direction
Right Hand
General
Application
For Steel, Stainless Steel, Cast Iron, Non-Ferrous Metals, High-Temperature Alloys, Titanium Alloys and Hard Materials
Material - Machining
High Speed Steel
Coolant Fed
Non-Coolant Through
Material Grade - Machining
High Performance
Depth:Dia. Ratio
4xD
Measurement System
Metric
Drill Bit Grouping
Individual
Primary Material Application ISO Code
K, P
Drill Bit Point Type
Split Point
Shank Dia.
1 1/2 in
Drill Diameter Tolerance
+0.0000 in /-0.0005 in
Shank Type - Machining
Straight
Drill Length Class
Jobber Length
Standards
DIN 338
Finish - Machining
Black & Gold

Product Description

The black-and-gold finish on these drill bits lubricates the bits and provides some resistance to wear and rust. These bits have spiral flutes that evacuate chips as the bits drill into a workpiece. They also have flats on their shank that help prevent the bits from slipping in a drill chuck when drilling at high speeds or under heavy loads.
