KRUEGER

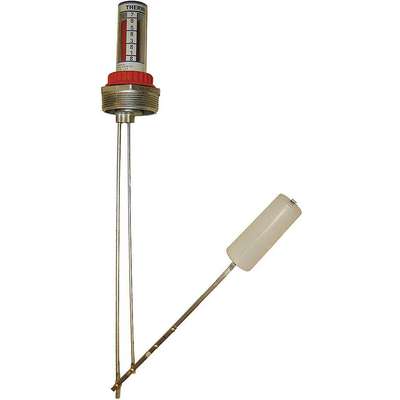

Krueger Therma Level Gauge: Convault5200, Fireguard Cylindrical 1000, 2000, 3000, 4000

Hover over image to magnify
Therma Level Gauge, 64"D, 6"
Therma Level Gauge, 64"D, 6"

#926494-3 | Pkg Qty: 1

$135.40 pkg | $135.40 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
KRUEGER
Mfr. Part Number
H-2-64-6
Calibration Increments
1/8s of a Tank
Mfr. Warranty Length
1 yr.
Connection Size
2 in. NPT
Package Quantity
1
Float Diameter
1.125 In
Rivet Material
Brass
Float Material
HDPE Plastic
Shipping Weight
3 lb.
Gasket Material
Duro Nitrile
Tank Depth
64 in.
Item
Therma Level Gauge
General
Assembly Nut Material
HDPE
Increment of Variation
Primary 1/4, Secondary 1/8
Bushing Material
Aluminum
Manufacturer Warranty Length
1 yr
Calibration Unit Material
Plastic
Maximum Operating Pressure
70 psi
Container Compatibility
No Exact Capacity No Specific Style
Maximum Temperature
120 °F
Extension Length
6 in
Minimum Temperature
-20 °F
Float Rod Material
Galvanized Steel
Pipe Size
2 in
For Container Capacity
No Exact Capacity
Rod Material
Galvanized Steel
For Container Depth
64 in
Rod/Float Material
Galvanized Steel / HDPE
For Container Type
No Specific Style
Temp. Range
-20° to 120°F
For Liquid Type
Diesel, Gasoline, Hydraulic Oil
Thread Gender
Male
Graduation Marks
Empty; Full; 1/8 Increments
Units of Measurement
Inches

Product Description

Therma Level Gauge, Convault5200, Fireguard Cylindrical 1000, 2000, 3000, 4000, Tank Depth 64 in, Extension Length 6 in, Connection Size 2 in NPT, Calibration Unit Material Plastic, Calibration Unit Increments 1/8s of a Tank, Gasket Material Duro Nitrile, Bushing Material Aluminum, Assembly Nut Material HDPE Plastic, Rod Material Galvanized Steel, Rivet Material Brass, Float Material HDPE Plastic, Float Dia. 1 1/8 in, Temp. Range -20 Degrees to 120 Degrees F, Pressure Rating 70 psi

Item Barcode
9264943
Therma Level Gauge, 64"D, 6"
 NameItemDescription
Grainger DropshipGrainger Dropship16N607Therma Level Gauge, 64"D,
UNSPSC CODESUNSPSC CODES41111938
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Therma Level Gauge, 64"D,
