BRYANT

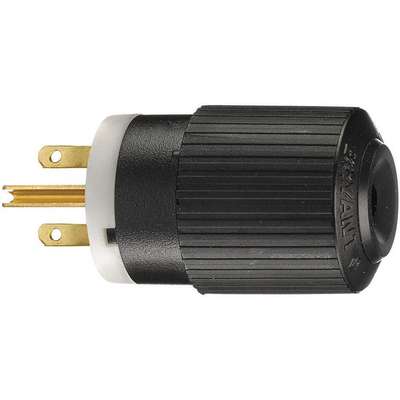

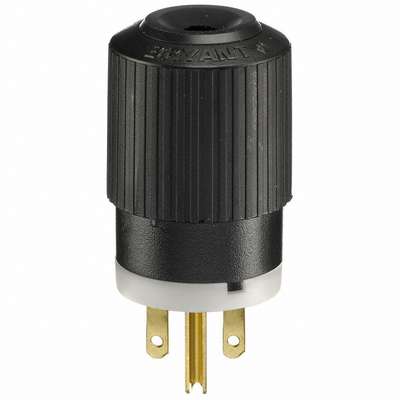

Bryant 15A Industrial Grade Straight Blade Plug, Black/White; NEMA Configuration: 6-15P
Hover over image to magnify
#926492-6 | Pkg Qty: 1
$16.17 pkg | $16.17 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps
15 A
Item
Straight Blade Plug
Antimicrobial
No
Material
Nylon
Body Length
2.18 in.
Maximum Wire Size
12 AWG
Brand
BRYANT
Mfr. Part Number
BRY5666NP
Color Family
Black / White
Minimum Wire Size
14 AWG
Compatible With
Triple Gripper®
NEMA Configuration - Plugs & Connectors
6-15
Connection Orientation
Straight
Number of Blades
3
Cord Size
0.245 in. to 0.655 in.
Number of Poles
2
Corrosion Resistant
No
Number of Wires
3
Current Rating
15 A
Outside Diameter
1.52 in.
Face Diameter
1.38 in.
Package Quantity
1
For Environment
Dry
Phase
Single
For Location
Indoor
Polarized
Yes
Grade
Industrial
Shipping Weight
.15 lb.
Grounding
Grounded
Standards
CSA Certified, UL Listed
Horsepower
2 hp
Voltage
250V AC
Housing Material
Composite
Wire Connection Type
Screw Terminals
IP Rating
Not Rated
Wiring Style
Standard
Insulation Material
Nylon
General
Features
Ergonomic, Fluted Body Design
Phase - Plugs and Receptacles
1
HP
2.0
Special Features
Ergonomic, Fluted Body Design
NEMA Plug Configuration - Plugs and Receptacles
6-15P
Product Description
Designed with tough, impact- and chemical-resistant nylon housing. Features internal Triple Gripper® cord clamp that automatically centers the cord and secures it. Dust seal surrounds cord to help prevent moisture and contaminants from entering the wiring chamber
Item Barcode
Blade Plug,Black/White,2.0 Hp,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 49YY54 | Blade Plug, Black/White, |
 | UNSPSC CODES | 39121402 | |
 | VMRS (ATA) CODES | 053-006-009 | Blade Plug, Black/White, |
