SQUARE D

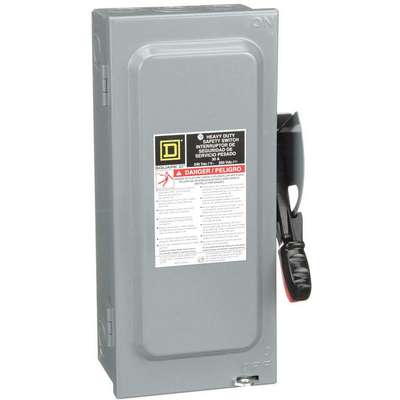

Square D Safety Switch, 1 NEMA Enclosure Type, 30 Amps AC, 3 HP @ 240VAC HP

Hover over image to magnify
Safety Switch,240VAC,2PST,30
PI_Asset_1363711
Safety Switch,240VAC,2PST,30
PI_Asset_1363711

#926461-7 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Safety Switch,240VAC,2PST,30
$88.28 pkg | $88.28 ea
Item: 921022-5
Pkg Qty: 1

Required Items

Items below are required. They are not included and need to be ordered separately.
Fuse,RK1,Lpn-Rk-Sp,30A,250VAC/
Pkg Qty: 1
$22.42 pkg
Fuse,RK1,Lpn-Rk-Sp,30A,250VAC/
Pkg Qty: 1
$22.42 pkg
Fuse,RK1,Lpn-Rk-Sp,30A,250VAC/
Pkg Qty: 1
$22.42 pkg
Fuse,RK5,Ser Frn-R,30 A,250VAC/
Pkg Qty: 1
$11.84 pkg
Fuse,RK5,Ser Frn-R,30 A,250VAC/
Pkg Qty: 1
$11.84 pkg
Fuse,RK5,Ser Frn-R,30 A,250VAC/
Pkg Qty: 1
$11.84 pkg

Technical Specifications

Key Specifications
Amperage
30 A
Metallic / Non-Metallic
Metallic
Amps AC
30
Mfr. Part Number
H221N
Brand
SQUARE D
NEMA Enclosure Type
1
Class R Fuse Kit
Mfr. No. RFK03L
NEMA Rating
1
Contact Form
2PST
Neutral Assembly
Included
Depth
4.9 in.
Number of Poles
2
Duty
Heavy
Number of Wires
3
For Use With
Class R Fuse
Package Quantity
1
Fusible / Nonfusible
Fusible
Phase
1
Height
14.6 in.
Protection Method
Fusible
Horsepower
3 HP @ 240VAC
Shipping Weight
9.2 lb.
IP Rating
20
Type
Fusible
Item
Safety Switch
Voltage
240 VAC
Material of Construction
Steel
Width
7-1/2 in.
General
HP
3 hp @ 240V AC
Use
Class H, J, R, T Fuse

Product Description

Heavy-Duty Safety Switches Designed to withstand short circuits up to 200kA rating when used with, or protected by, Class R fuses with Class R kits installed (this page). See Class RK5 fuses on page 259. Switches meet NEMA Standards KS1-1990, Enclosed Switches
